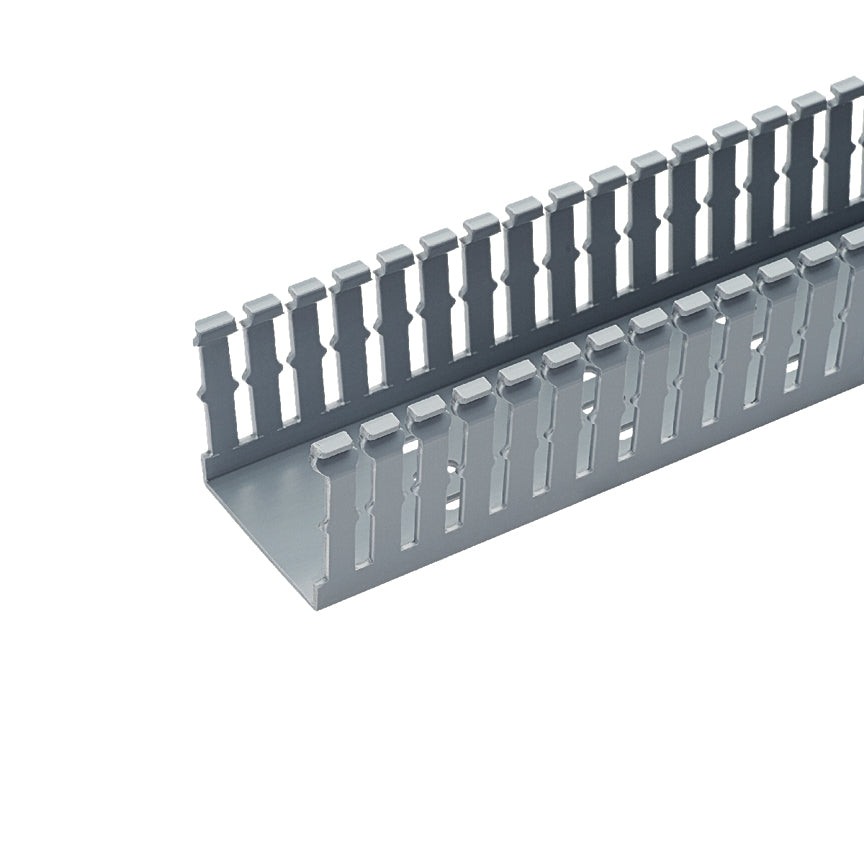

Panduit F2X1LG6 | Panduct Base Wiring Duct
Regular price
$50.91
Unit price
Brand: Panduit
|
SKU:
F2X1LG6
Regular price
$50.91
Unit price
Description
Description
Panduit F2X1LG6 | Panduct Base Wiring Duct
Our Type F narrow slot wiring duct precisely channels high-density wiring in control panels, providing you a secure and organized solution for efficient cable management.
Narrow finger, slotted wiring duct.
Panduit Slot Wall Wiring Duct, Type F Narrow, 2-1/4 in Width, 1 in Depth, 6 ft Length, 2 mil Thickness, 0.2 in Slot, Surface Mount, Lead-Free PVC, Light Gray
Panduit - F2X1LG6 - Features
- Narrow finger and slot design closely matches the spacing of high-density components
- Upper and lower scorelines allows easy finger and sidewall section removals
- Specifications
- Made of lead-free PVC
- UL Recognized continuous use temperature: 50C (122F)
- UL94 Flammability Rating of V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
- Available in Light Gray and White
- Provided with mounting holes
Specifications
Specifications
Panduit - F2X1LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F2X1LG6 |
| Components | Slotted Duct High Density |
| Fiber Duct H X W | 2" X 1" |
| Material | Plastic |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
| Duct Dimensions (In.) | 2.25W x 1.12H |
| Product Type | Base Wiring Duct |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Color | Light Gray |
| Cover Part Number | C2LG6 |
| Flammability Rating | UL94 V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | F |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 2.25 |
| Overall Width (mm) | 57.2 |
| Overall Height (In.) | 1.12 |
| Overall Height (mm) | 28.4 |
| Slot Width (In.) | 0.2 |
| UPC | 07498337545 |
