Brand: Panduit
|
SKU:
PAN-F3X2LG6

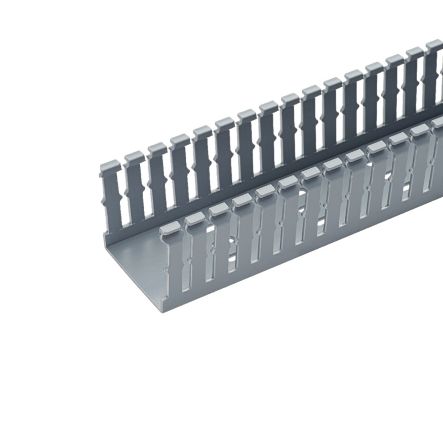

Panduit F3X2LG6 | Base Wiring Duct | UPC - 07498337573
Regular price
$58.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F3X2LG6 | Base Wiring Duct | UPC - 07498337573
Regular price
$58.74
Unit price
Description
Description
Panduit Slot Wall Wiring Duct, Type F Narrow, 3-1/4 in Width, 2 in Depth, 6 ft Length, 2 mil Thickness, 0.2 in Slot, Surface Mount, Lead-Free PVC, Light Gray
Features + Benefits
- Narrow finger and slot design closely matches the spacing of high-density components
- Upper and lower scorelines allows easy finger and sidewall section removals
Panduit F3X2LG6 | Base Wiring Duct | UPC - 07498337573 Key Specs
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C3LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Material | PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | F |
| Overall Height (In.) | 2.12 |
| Overall Height (mm) | 53.8 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 3.25 |
| Overall Width (mm) | 82.6 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5 |
Panduit F3X2LG6 | Base Wiring Duct | UPC - 07498337573 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - F.5X.5LG6 Product Page | Download and View |
| Specification Sheets | Type C Wiring Duct Cover with Protective Film | Download and View |
| Cross References | Wiring Duct Available Colors and Sizes | Download and View |
Panduit F3X2LG6 | Base Wiring Duct | UPC - 07498337573 Environmental Information
| Panduit's RoHS Statement | Download and View |
