Brand: Panduit
|
SKU:
PAN-F3X3WH6
Panduit F3X3WH6 | Base Wiring Duct | UPC - 07498337576
Regular price
$71.80
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F3X3WH6 | Base Wiring Duct | UPC - 07498337576
Regular price
$71.80
Unit price
Description
Description

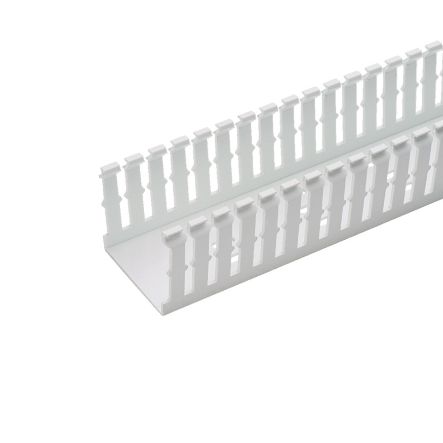

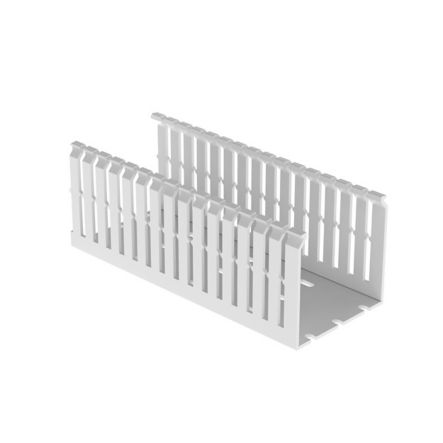

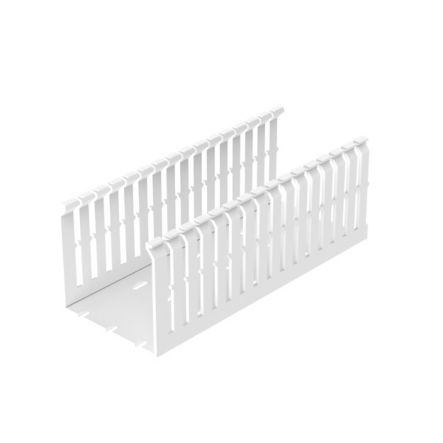

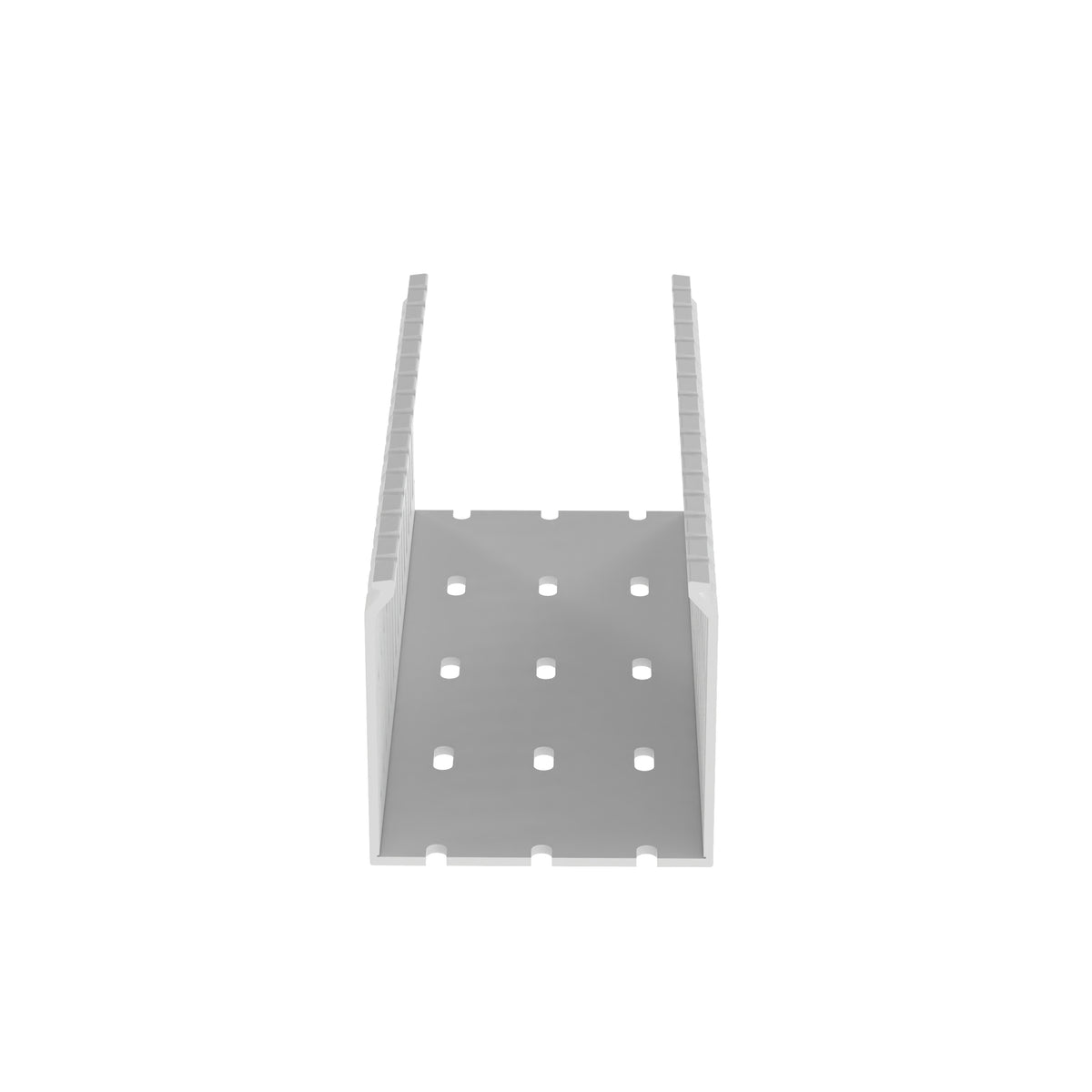

Panduit Slot Wall Wiring Duct, Type F Narrow, 3-1/4 in Width, 3 in Depth, 6 ft Length, 2 mil Thickness, 0.2 in Slot, Surface Mount, Lead-Free PVC, White
Features + Benefits
- Narrow finger and slot design closely matches the spacing of high-density components
- Upper and lower scorelines allows easy finger and sidewall section removals
Panduit F3X3WH6 | Base Wiring Duct | UPC - 07498337576 Key Specs
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Product Type | Base Wiring Duct |
| Color | White |
| Cover Part Number | C3WH6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Material | PVC |
| Mount Method | Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | F |
| Overall Height (In.) | 3.13 |
| Overall Height (mm) | 78.7 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 3.25 |
| Overall Width (mm) | 82.6 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5 |
Panduit F3X3WH6 | Base Wiring Duct | UPC - 07498337576 Data Sheets
| Part Drawings | Narrow Slot Wiring Duct | Download and View |
| Specification Sheets | Type C Wiring Duct Cover with Protective Film | Download and View |
| Cross References | Wiring Duct Available Colors and Sizes | Download and View |
Panduit F3X3WH6 | Base Wiring Duct | UPC - 07498337576 Environmental Information
| Panduit's RoHS Statement | Download and View |
