Panduit F4X3LG6 | Panduct Base Wiring Duct
Description
Description
Our Type F narrow slot wiring duct precisely channels high-density wiring in control panels, providing you a secure and organized solution for efficient cable management.

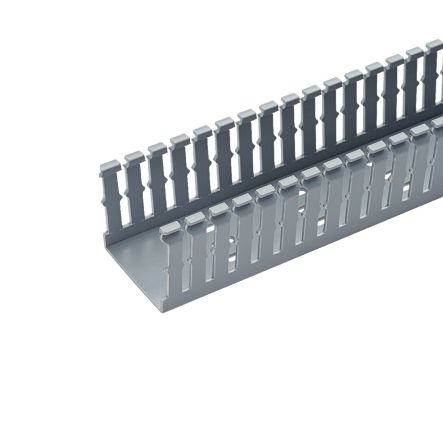

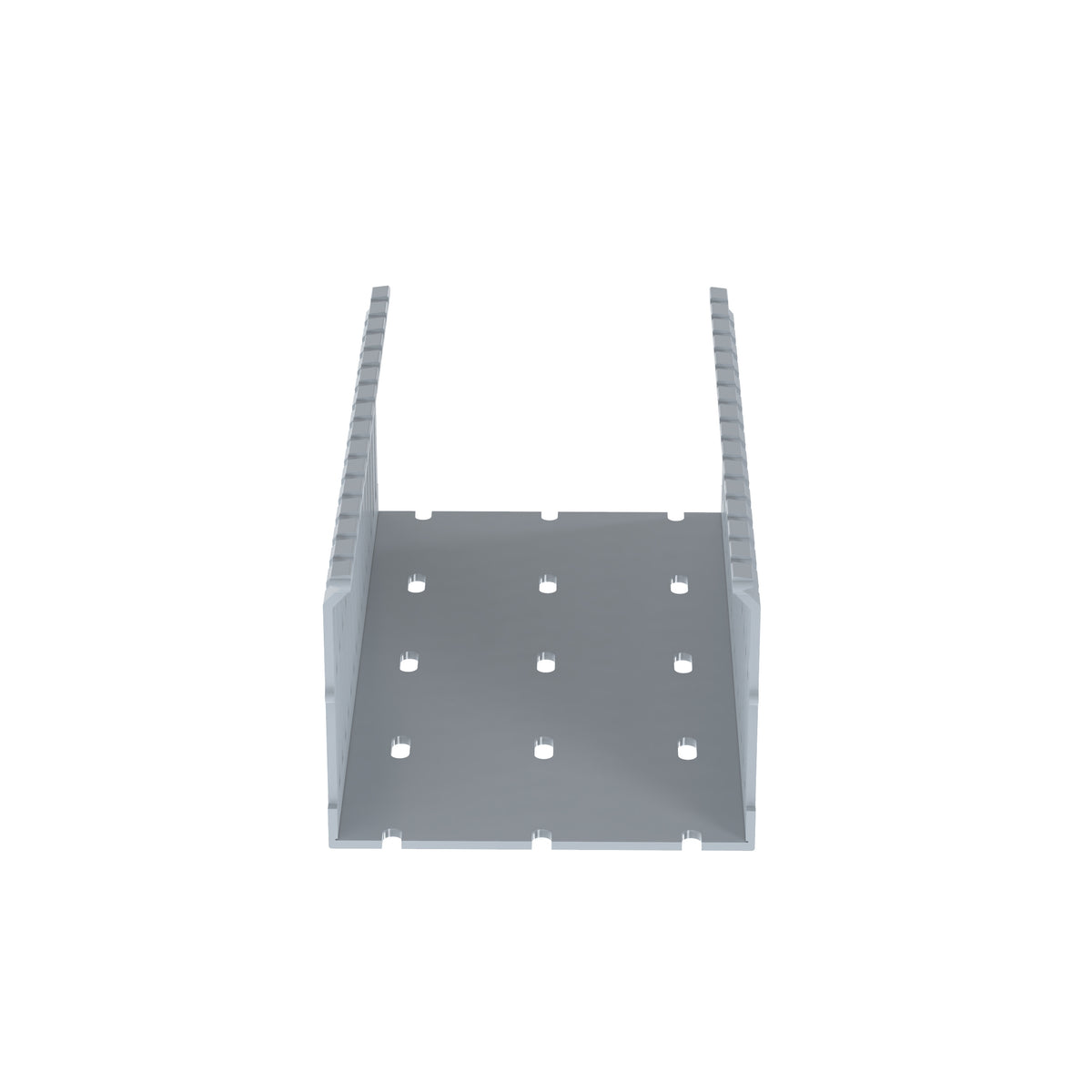

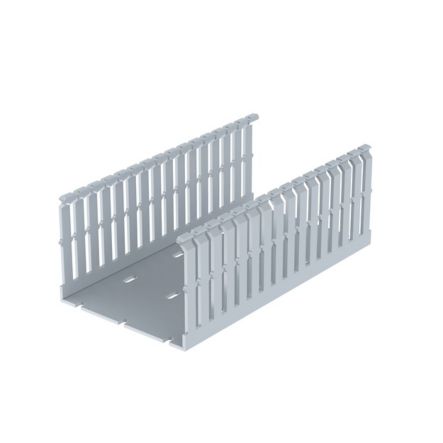

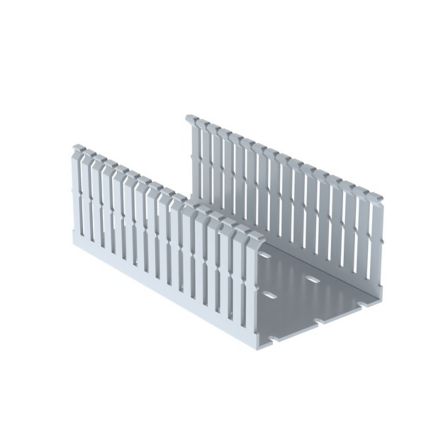

The F4X3LG6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Mounting holes provided. Lead-free PVC. 3.12" x 4.25" (79.2 mm x 108 mm) and 6’ (1.83 m) long. Cover sold separately. Color Light Gray. 6 per package.
Panduit Panduct Wiring Duct, Type F, 4 in Width, 6 ft Length, 2 mil Thickness, Narrow Slotted/Finger Slot, 0.2 in W Slot, Surface/Hole Mounting, PVC, Light Gray
Panduit - F4X3LG6 - Features
- Narrow finger and slot design closely matches the spacing of high density components
- Upper and lower scorelines allows easy finger and sidewall section removals
- Provided with mounting holes
- Specifications
- Made of lead-free PVC
- UL Recognized continuous use temperature: 50C (122F)
- UL94 Flammability Rating of V-0
- Conforms with NFPA 79-2002 section 14.3.1 requirement for flame retardant material
- Available in Light Gray and White
- Provided with mounting holes
Specifications
Specifications
Panduit - F4X3LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F4X3LG6 |
| Components | Slotted Duct High Density |
| Fiber Duct H X W | 4" X 3" |
| Finish | Grey |
| Material | Pvc |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
| Duct Dimensions (In.) | 4.25W x 3.12H |
| Product Type | Base Wiring Duct |
| Application | Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications |
| Color | Light Gray |
| Cover Part Number | C4LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Narrow Slot Wiring Duct |
| Wiring Duct Type | F |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 4.25 |
| Overall Width (mm) | 108 |
| Overall Height (In.) | 3.12 |
| Overall Height (mm) | 79.2 |
| Slot Width (In.) | 0.2 |
| UPC | 07498337593 |
