Brand: Panduit
|
SKU:
PAN-F612D5-5F30Y
Panduit F612D5-5F30Y | MTP* 12 Fiber Interconnect Cable Assembly | UPC - 07498315512
Regular price
$454.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F612D5-5F30Y | MTP* 12 Fiber Interconnect Cable Assembly | ...
Regular price
$454.00
Unit price
Brand: Panduit
|
SKU:
PAN-F612D5-5F30Y
Regular price
$454.00
Unit price
Shipping calculated at checkout.
Description
Description

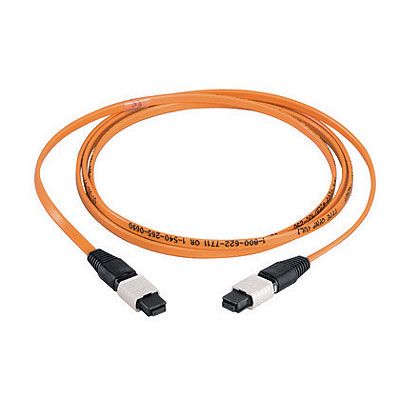

Female MTP to female MTP twelve strand fiber optic cable assembly (one female MTP connector on each end on ribbon interconnect cable) 62.5/125µm Outside diameter: 5mm x 25mm, Orange, 30 ft
Panduit F612D5-5F30Y | MTP* 12 Fiber Interconnect Cable Assembly | UPC - 07498315512 Key Specs
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OM1 |
| Number of Fibers | 12 |
| Connector 1 Type | MPO Female |
| Connector 2 Type | MPO Female |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 20 |
| Overall Length (ft.) | 30 |
| Overall Length (m) | 9.1 |
| Fiber Diameter (µm) | 62.5 |
| Outer Diameter (In.) | 0.49 |
| Outer Diameter (mm) | 12.5 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Orange |
| Standards Met | RoHS Directive is not applicable. TIA/EIA-568-B.3 and ISO/IEC 11801, IEC-61754-7 (International), TIA-604-5 (FOCIS-5), NFPA 262 (OFNP) flame rating |
| Application | Used in high-density network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Simplex |
| Product Type | MTP* 12 Fiber Interconnect Cable Assembly |
| Boot Color | Black |
Panduit F612D5-5F30Y | MTP* 12 Fiber Interconnect Cable Assembly | UPC - 07498315512 Data Sheets
| Technical References | Troubleshooting a Permanent Link: FBTR117--WW-ENG | Download and View |
| Application Guides | QuickNet™ Fiber Cabling In Data Center: FBAG01--WW-FRA | Download and View |
| Specification Sheets | Opti-Core® Fiber Optic Patch Cords and Pigtails | Download and View |
Panduit F612D5-5F30Y | MTP* 12 Fiber Interconnect Cable Assembly | UPC - 07498315512 Environmental Information
| Panduit's RoHS Statement | Download and View |
