Panduit F623RSNSNSNM030 | Fiber Optic Patch Cord
Description
Description
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications. Fiber optic patch cords and pigtails are available in OM4, OM3, OM2, OM1 or OS1/ OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel.

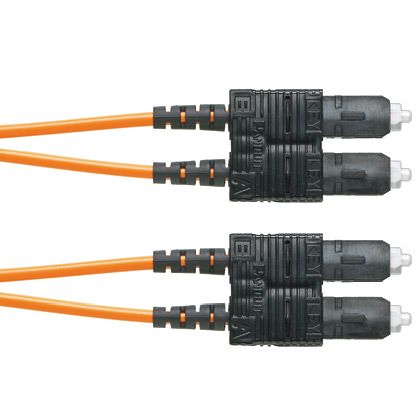

Panduit Opti-Core Fiber Optic Patch Cord, Duplex OM1 Multi-Mode Riser, 2 Fibers, 98.43 ft Length, SC to SC Connector, 62.5 um Core, 125 um Clad, Orange Jacket, -20 to 70 deg C
Panduit - F623RSNSNSNM030 - Features
- Works with all Panduit Opticom fiber optic cassettes and fiber adapter panels - Provides versatility and flexibility with a fully modular solution for a variety of pre-terminated installations, FAP and field termination and splicing installations
- Works with all Panduit LC, SC, ST, MT-RJ and MTP fiber adapter panels and cassettes
- Provides higher patch field density in fewer rack units saving valuable space - Modular design mounts up to four Opticom cassettes or FAP's per RU and up to three Opticom cassettes per RU for the angled fiber optic trays
- Angled design - Allows cable to flow to each side of the rack: patch cords can be routed directly into vertical cable managers
- Fiber optic splice module - Can fusion splice up to 96 fibers per RU in a single enclosure with one-to-one splice-to-patching ratio
- Side and rear cable entry - Provides installer with several options to route cable within the tray
- Patch panel mounting - Hardware provided to allow patch panel to be pre-assembled before mounting to rack
Specifications
Specifications
Panduit - F623RSNSNSNM030 - Specifications
| Fiber Type | OM1 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | SC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 20 |
| Overall Length (ft.) | 98.43 |
| Overall Length (m) | 30 |
| Fiber Diameter (µm) | 62.5 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 70 |
| Maximum Installation Temperature (°F) | 158 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Orange |
| Standards Met | RoHS Compliant; Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), All patch cord componentsmeet the requirements of Directive 2002/95/EC |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498382384 |
Panduit - F623RSNSNSNM030 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
