Brand: Panduit
|
SKU:
663642

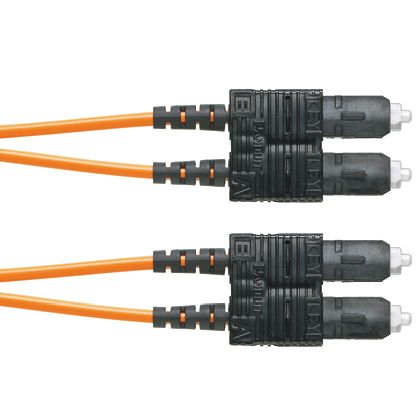

Panduit F623RSNSNSNM035 | Fiber Optic Patch Cord
Regular price
$121.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F623RSNSNSNM035 | Fiber Optic Patch Cord
Regular price
$121.49
Unit price
Description
Description
Panduit F623RSNSNSNM035 | Fiber Optic Patch Cord
F623RSNSNSNM035 OM1 2-fiber 3mm jacket patchcord riser (OFNR) rated SC duplex to SC duplex std. IL.
Panduit - F623RSNSNSNM035 - Features
- Works with all Panduit Opticom fiber optic cassettes and fiber adapter panels
- Provides higher patch field density in fewer rack units saving valuable space
- Fiber optic splice module
- Side and rear cable entry
- Holds up to eight FAP or FMP adapter panels
Specifications
Specifications
Panduit - F623RSNSNSNM035 - Specifications
| Fiber Type | OM1 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | SC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 20 |
| Overall Length (ft.) | 114.83 |
| Overall Length (m) | 35 |
| Fiber Diameter (µm) | 62.5 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 70 |
| Maximum Installation Temperature (°F) | 158 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Orange |
| Standards Met | RoHS Compliant; Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), All patch cord componentsmeet the requirements of Directive 2002/95/EC |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498382400 |
Panduit - F623RSNSNSNM035 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
