Panduit F62ELLNSNSNM002 | Fiber Optic Patch Cord
Description
Description
OM1 2 fiber, 16mm jacket, patchcord, Low Smoke Zero Halogen (LSZH) rated, LC duplex to SC duplex, Std IL
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications. Fiber optic patch cords and pigtails are available in OM4, OM3, OM2, OM1 or OS1/ OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel.

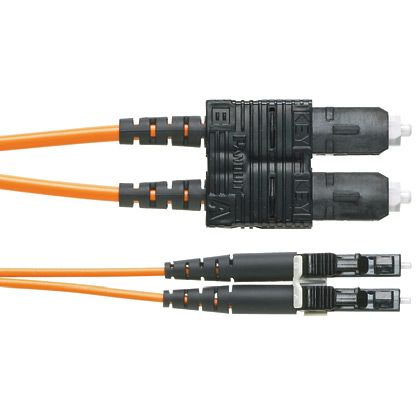

Panduit Opti-Core Fiber Optic Patch Cord, Duplex OM1 Multi-Mode LSZH, 2 Fibers, 6.56 ft Length, LC to SC Connector, 62.5 um Core, 125 um Clad, Orange Jacket
Panduit - F62ELLNSNSNM002 - Features
- One-piece hinged design
- 1 in bend radius control fittings
- Adhesive backing
Specifications
Specifications
Panduit - F62ELLNSNSNM002 - Specifications
| Connector Type | Lc - Sc |
|---|---|
| Fiber Type | Om1 |
| Length | 2 M | 6.56 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OM1 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 20 |
| Overall Length (ft.) | 6.56 |
| Overall Length (m) | 2 |
| Fiber Diameter (µm) | 62.5 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Orange |
| Standards Met | RoHS Compliant; Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), All patch cord componentsmeet the requirements of Directive 2002/95/EC |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498373692 |
Panduit - F62ELLNSNSNM002 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
