Brand: Panduit
|
SKU:
663467

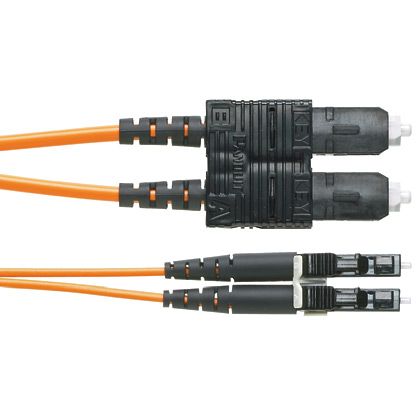

Panduit F62ELLNSNSNM009 | Fiber Optic Patch Cord
Regular price
$69.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F62ELLNSNSNM009 | Fiber Optic Patch Cord
Regular price
$69.19
Unit price
Description
Description
Panduit F62ELLNSNSNM009 | Fiber Optic Patch Cord
OM1 2 fiber, 16mm jacket, patchcord, Low Smoke Zero Halogen (LSZH) rated, LC duplex to SC duplex, Std IL
Panduit - F62ELLNSNSNM009 - Features
- Without pulling eye
Specifications
Specifications
Panduit - F62ELLNSNSNM009 - Specifications
| Fiber Type | OM1 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | LSZH |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 20 |
| Overall Length (ft.) | 29.52 |
| Overall Length (m) | 9 |
| Fiber Diameter (µm) | 62.5 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Orange |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), RoHS Compliant, All patch cord components meet the requirements of Directive 2002/95/EC. |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498373699 |
