Brand: Panduit | SKU: 663476

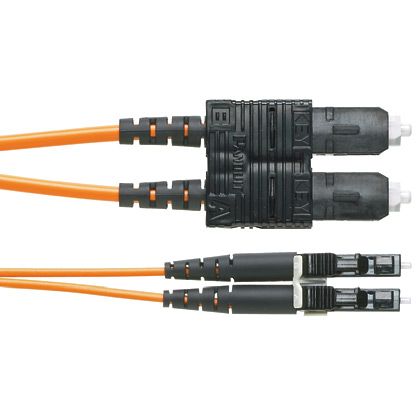

Panduit F62ERLNSNSNM012 | Fiber Optic Patch Cord

Name: Panduit F62ERLNSNSNM012 | Fiber Optic Patch Cord
Brand: Anixter
SKU: 663476
Price: 74.41 USD
Availability: InStock

$74.41

Shipping calculated at checkout.

Description

OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL

Fiber Type	OM1
Number of Fibers	2
Connector 1 Type	LC Duplex
Connector 2 Type	SC Duplex
Flammability Rating	Riser
Maximum Connector Insertion Loss (dB)	0.25
Minimum Connector Return Loss (dB)	20
Overall Length (ft.)	39.37
Overall Length (m)	12
Fiber Diameter (µm)	62.5
Outer Diameter (In.)	0.06
Outer Diameter (mm)	1.6
Maximum Operating Temperature (°C)	70
Maximum Operating Temperature (°F)	158
Minimum Operating Temperature (°C)	-20
Minimum Operating Temperature (°F)	-4
Maximum Installation Temperature (°C)	70
Maximum Installation Temperature (°F)	158
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Resistance Properties	Flame-Resistant
Cable Color	Orange
Standards Met	Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), RoHS Compliant, All patch cord components meet the requirements of Directive 2002/95/EC.
Application	Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas.
Body Style	Duplex
Product Type	Fiber Optic Patch Cord
Sub Brand	Opti-Core
UPC	07498373208
