Panduit F62ERLNSNSNM020 | Fiber Optic Patch Cord
Description
Description
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications. Fiber optic patch cords and pigtails are available in OM4, OM3, OM2, OM1 or OS1/ OS2 fiber types to meet the demands of Gigabit Ethernet, 10 Gigabit Ethernet and high speed fiber channel.

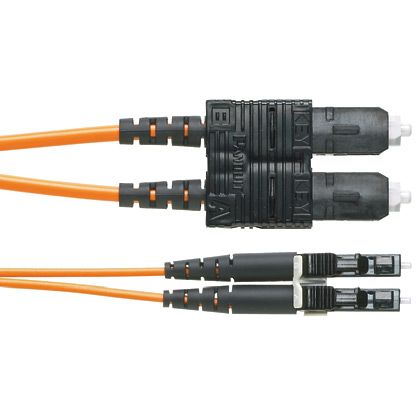

Panduit Opti-Core Fiber Optic Patch Cord, Duplex OM1 Multi-Mode Riser, 2 Fibers, 65.62 ft Length, LC to SC Connector, 62.5 um Core, 125 um Clad, Orange Jacket, -20 to 70 deg C
Panduit - F62ERLNSNSNM020 - Features
- Designed to provide solutions for routing of power or low voltage data and fiber optic cabling along perimeter walls
- Multi-channel system allows end user to purchase one raceway to route both data and power cabling
- 1-piece hinged design cables can be laid into the raceway, which prevents damage to cables during installation
- Adhesive backing for temporary mounting installations are easier and faster, reducing the total installed cost
- Highly tamper-resistant provides maximum security for communication cabling and maximum safety for power cabling
Specifications
Specifications
Panduit - F62ERLNSNSNM020 - Specifications
| Fiber Type | OM1 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 20 |
| Overall Length (ft.) | 65.61 |
| Overall Length (m) | 20 |
| Fiber Diameter (µm) | 62.5 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 70 |
| Maximum Installation Temperature (°F) | 158 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Orange |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), RoHS Compliant, All patch cord components meet the requirements of Directive 2002/95/EC. |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498373231 |
Panduit - F62ERLNSNSNM020 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
