Brand: Panduit
|
SKU:
PAN-F77-8-M

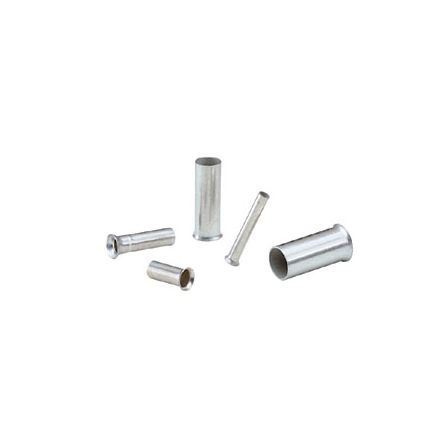

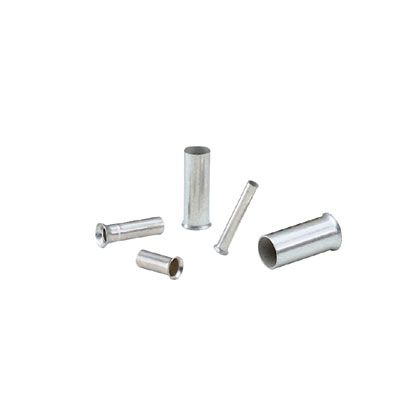

Panduit F77-8-M | Pan-Term F77-8-M Non-covered Ferrules
Regular price
$132.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F77-8-M | Pan-Term F77-8-M Non-covered Ferrules
Regular price
$132.24
Unit price
Description
Description
Panduit F77-8-M | Pan-Term F77-8-M Non-covered Ferrules
Ferrule, non-insulated, 1mm2 wire range, 0.31(8.0mm) length.
Panduit F77-8-M Ferrule, Non-insulated, 18 Awg (1.0mm2), 0.31 (8.0mm) Length, Pack Of 1000
Specifications
Specifications
Panduit - F77-8-M - Product Categories
- Wire Termination
- Ferrules
Panduit - F77-8-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F77-8-M |
| Item Description | Pan-Term F77-8-M Non-covered Ferrules |
| Ferrule Type | Single Wire Standard |
| Maximum Metric Conductor Size (mm²) | 1 |
| UL Temperature Rating (°C) | 150 |
| CSA Temperature Rating (°C) | 150 |
| Wire Strip Length (In.) | 5/16 |
| Wire Strip Length (mm) | 8 |
| Inside Diameter (In.) | 0.06 |
| Inside Diameter (mm) | 1.4 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.07 |
| Outer Diameter (mm) | 1.7 |
| Overall Length (In.) | 0.31 |
| Overall Length (mm) | 8 |
| Product Type | Non-covered Ferrules |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1002, CT-1003, CT-1123, CT-1090, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Metallic |
| Sub Brand | Pan-Term |
| Part Features | Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Meets DIN, UL & CSA standards for wire containment Suitable for limited space panel |
Panduit - F77-8-M - Package Information
| UPC | 07498376327 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.0896 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
