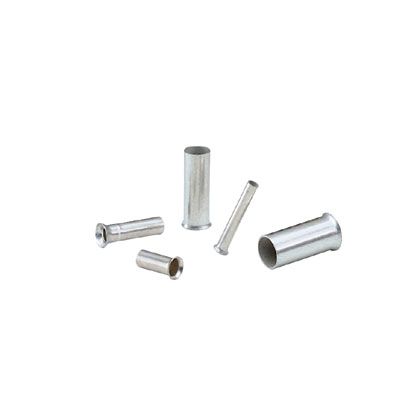

Panduit F80-18-M | Pan-Term Non-covered Ferrules
Description
Description
For long-lasting performance, the single wire ferrule ensures clean, secure wire connections for terminal blocks in tight spaces.
Ferrule, non-insulated, 14 AWG wire range, 0.71(18.0mm) length.
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type F Non-Insulated Standard, Stranded Conductor, 14 AWG Conductor, 18 mm Length, Seamless Tubular Barrel, 0.09 in ID x 0.1 in OD Barrel, 23/32 in L Wire Strip, 302 deg F, Copper, Tin Plated, Metallic
Panduit - F80-18-M - Features
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN, UL and CSA standards for wire containment
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN standards for wire containment
- Suitable for limited space panel applications
- Multiple pin lengths available for a variety of terminal blocks
Specifications
Specifications
Panduit - F80-18-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F80-18-M |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Ferrule Type | Single Wire Standard |
| Copper Conductor Size (AWG) | 14 |
| Maximum Copper Conductor Size (AWG) | 14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| UL Temperature Rating (°C) | 150 |
| CSA Temperature Rating (°C) | 150 |
| Wire Strip Length (In.) | 23/32 |
| Wire Strip Length (mm) | 18 |
| Inside Diameter (In.) | 0.09 |
| Inside Diameter (mm) | 2.2 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.1 |
| Outer Diameter (mm) | 2.5 |
| Overall Length (In.) | 0.71 |
| Overall Length (mm) | 18 |
| Product Type | Non-Covered Ferrule |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1002, CT-1003, CT-1123, CT-1090, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH) |
| UPC | 07498376340 |
Panduit - F80-18-M - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
