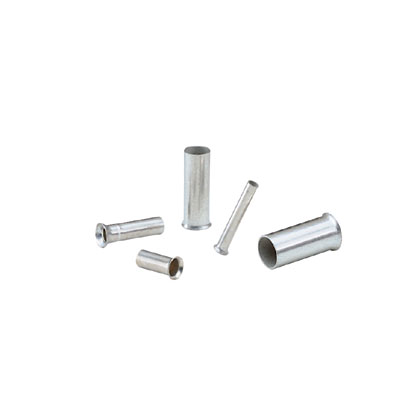

Panduit F81-10-M | Non-insulated Ferrules | UPC - 07498376423
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type F Non-Insulated Standard, Stranded Conductor, 12 AWG Conductor, 10 mm Length, Seamless Barrel, 0.16 in OD Barrel, 13/32 in L Wire Strip, 302 deg F, Copper, Tin Plated, Metallic
Features + Benefits
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
Panduit F81-10-M Key Specs
| Insulation Material | Non-Insulated |
| Wire Strip Length (In.) | 0.39 |
| Wire Strip Length (mm) | 10 |
| Inside Diameter (In.) | 0.11 |
| Inside Diameter (mm) | 2.9 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.13 |
| Outer Diameter (mm) | 3.2 |
| Overall Length (In.) | 0.39 |
| Overall Length (mm) | 10 |
| Product Type | Non-insulated Ferrules |
| Standards Met | DIN 46228 Part 1, CSA C22.2 No. 291-14 |
| Finish/Coating | Tin-Plated |
Panduit F81-10-M Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - PMNF1-3F-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A41538 | Download and View |
| Part Drawings | Fork, Nylon (Funnel) Insulated 22 - 18 AWG - A41260 Rev 09 | Download and View |
