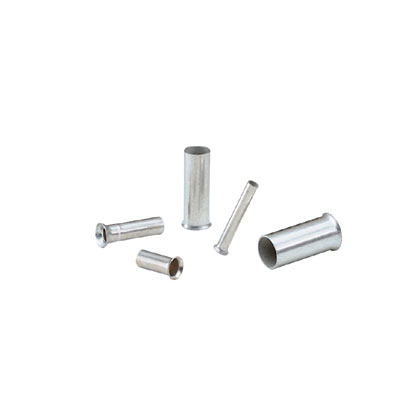

Panduit F81-18-M | Non-insulated Ferrules | UPC - 07498376344
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type F Non-Insulated Standard, Stranded Conductor, 12 AWG Conductor, 18 mm Length, Seamless Tubular Barrel, 0.11 in ID x 0.13 in OD Barrel, 23/32 in L Wire Strip, 302 deg F, Copper, Tin Plated, Metallic
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN, UL and CSA standards for wire containment
Panduit Panduit F81-18-M | Non-insulated Ferrules | UPC - 07498376344 Key Specs
| Insulation Material | Non-Insulated |
| Wire Strip Length (In.) | 0.71 |
| Wire Strip Length (mm) | 18 |
| Inside Diameter (In.) | 0.11 |
| Inside Diameter (mm) | 2.9 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.13 |
| Outer Diameter (mm) | 3.2 |
| Overall Length (In.) | 0.71 |
| Overall Length (mm) | 18 |
| Product Type | Non-insulated Ferrules |
| Standards Met | DIN 46228 Part 1, CSA C22.2 No. 291-14 |
| Finish/Coating | Tin-Plated |
Panduit Panduit F81-18-M | Non-insulated Ferrules | UPC - 07498376344 Environmental Information
| Panduit's RoHS Statement | Download and View |
