Brand: Panduit
|
SKU:
325541-EA

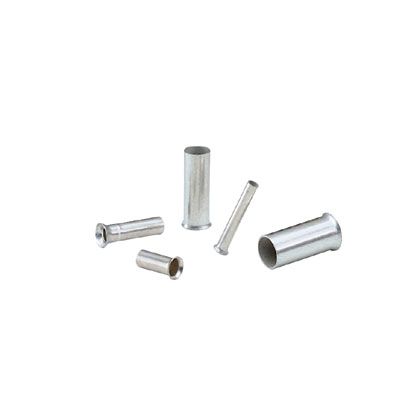

Panduit F83-12-D | Pan-Term F83-12-D Single wire ferrule, 12mm Pin L, PK500
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F83-12-D | Pan-Term F83-12-D Single wire ferrule, 12mm Pin ...
Regular price
$1.46
Unit price
Description
Description
Panduit F83-12-D | Pan-Term F83-12-D Single wire ferrule, 12mm Pin L, PK500

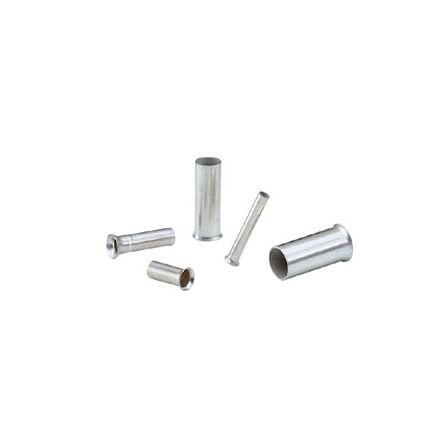

Panduit F83-12-D Non-Insulated Ferrule
Panduit F83-12-D - CONN - NON-INSULATED FERRULE
Specifications
Specifications
Panduit - F83-12-D - Product Categories
- Wire Termination
- Ferrules
Panduit - F83-12-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F83-12-D |
| Item Description | Pan-Term F83-12-D Single wire ferrule, 12mm Pin L, PK500 |
| Ferrule Type | Single Wire Standard |
| Copper Conductor Size (AWG) | #8 |
| Maximum Copper Conductor Size (AWG) | #8 |
| Maximum Metric Conductor Size (mm²) | 10 |
| Minimum Copper Conductor Size (AWG) | #8 |
| Minimum Metric Conductor Size (mm²) | 10 |
| UL Temperature Rating (°C) | 150 |
| CSA Temperature Rating (°C) | 150 |
| Wire Strip Length (In.) | 15/32 |
| Wire Strip Length (mm) | 12 |
| Pin Length (In.) | 0.47 |
| Pin Length (mm) | 12 |
| Inside Diameter (In.) | 0.18 |
| Inside Diameter (mm) | 4.5 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Outer Diameter (In.) | 0.19 |
| Outer Diameter (mm) | 4.9 |
| Overall Length (In.) | 0.47 |
| Overall Length (mm) | 12 |
| Product Type | Non-covered Ferrules |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1003, CT-1004, CT-1090, CT-1123, CT-1104, CT-1160, CT-1170,CT-2300/ST (CD-090), CT-2500/L (CT-2504CH, CT-2523CH) |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Metallic |
| Sub Brand | Pan-Term |
| Part Features | Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Meets DIN, UL & CSA standards for wire containment Suitable for limited space panel |
Panduit - F83-12-D - Package Information
| UPC | 07498376351 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.1912 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - F83-12-D - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
