Brand: Panduit | SKU: PAN-F83-12-D

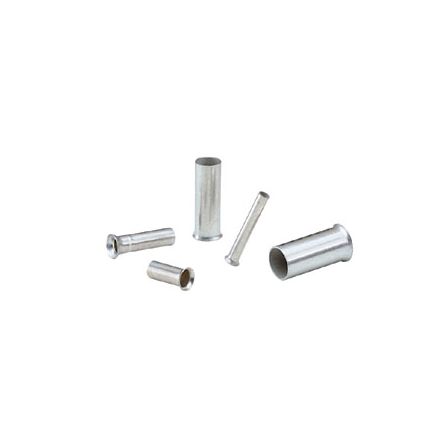

Panduit F83-12-D | Pan-Term Non-Covered Ferrules

Name: Panduit F83-12-D | Pan-Term Non-Covered Ferrules
Brand: Panduit
SKU: PAN-F83-12-D
Price: 144.95 USD
Availability: InStock

$144.95

Shipping calculated at checkout.

Description

For long-lasting performance, the single wire ferrule ensures clean, secure wire connections for terminal blocks in tight spaces.

Ferrule Type	Single Wire Standard
Copper Conductor Size (AWG)	8
Maximum Copper Conductor Size (AWG)	8
Minimum Copper Conductor Size (AWG)	#8
Maximum Metric Conductor Size (mm²)	10
Minimum Metric Conductor Size (mm²)	10
UL Temperature Rating (°C)	150
CSA Temperature Rating (°C)	150
Wire Strip Length (In.)	15/32
Wire Strip Length (mm)	12
Pin Length (In.)	0.47
Pin Length (mm)	12
Inside Diameter (In.)	0.18
Inside Diameter (mm)	4.5
Maximum Operating Temperature (°C)	150
Maximum Operating Temperature (°F)	302
Minimum Operating Temperature (°C)	-54
Minimum Operating Temperature (°F)	-60
Outer Diameter (In.)	0.19
Outer Diameter (mm)	4.9
Overall Length (In.)	0.47

Panduit F83-12-D Video	Click to View
