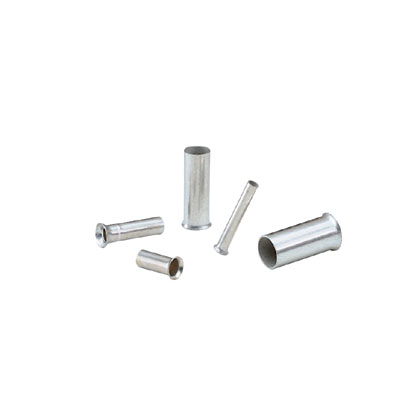

Panduit F85-25-C | Non-insulated Ferrules | UPC - 07498376365
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type F Non-Insulated Standard, Stranded Conductor, 4 AWG Conductor, 25 mm Length, Seamless Barrel, 0.37 in OD Barrel, 31/32 in L Wire Strip, 302 deg F, Copper, Tin Plated, Metallic
Features + Benefits
- Delivers a much wider inside diameter to provide a significant air gap between the wire and the outside of the sleeve, to prevent an electrical arc to adjacent material
- Polypropylene sleeve forms a guide for easy insertion of wire strands into the crimp barrel to enhance the installation process and improve productivity
- A tin plated copper barrel provides a crimp barrel without any weak points for a consistent and reliable installation
- Ensures ferrules meet dimensional expectations and performance requirements for improved safety and product compatibility
Panduit F85-25-C | Non-insulated Ferrules | UPC - 07498376365 Key Specs
| Insulation Material | Non-Insulated |
| Wire Strip Length (In.) | 0.98 |
| Wire Strip Length (mm) | 25 |
| Inside Diameter (In.) | 0.29 |
| Inside Diameter (mm) | 7.3 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.3 |
| Outer Diameter (mm) | 7.7 |
| Overall Length (In.) | 0.98 |
| Overall Length (mm) | 25 |
| Product Type | Non-insulated Ferrules |
| Standards Met | DIN 46228 Part 1, CSA C22.2 No. 291-14 |
| Finish/Coating | Tin-Plated |
Panduit F85-25-C | Non-insulated Ferrules | UPC - 07498376365 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Ferrules - Bare, No Sleeve Sheet 1 Of 2 | Download and View |
| Catalog Cut Sheets | Ferrules, Non-Insulated | Download and View |
Panduit F85-25-C | Non-insulated Ferrules | UPC - 07498376365 Environmental Information
| Panduit's RoHS Statement | Download and View |
