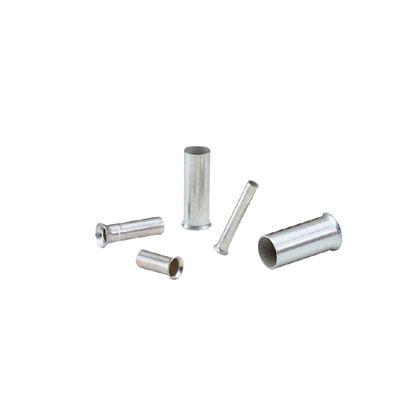

Panduit F86-25-C | Single wire ferrule | UPC - 07498376369
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type F Non-Insulated Standard, Stranded Conductor, 2 AWG Conductor, 25 mm Length, Seamless Barrel, 0.43 in OD Barrel, 31/32 in L Wire Strip, 302 deg F, Copper, Tin Plated, Metallic
Features + Benefits
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
Panduit F86-25-C Key Specs
| Ferrule Type | Single Wire Standard |
| Copper Conductor Size (AWG) | 2 |
| Maximum Metric Conductor Size (mm²) | 35 |
| Minimum Metric Conductor Size (mm²) | 35 |
| Wire Strip Length (In.) | 31/32 |
| Wire Strip Length (mm) | 25 |
| Pin Length (In.) | 0.98 |
| Pin Length (mm) | 25 |
| Inside Diameter (In.) | 0.33 |
| Inside Diameter (mm) | 8.3 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Overall Length (In.) | 0.98 |
| Overall Length (mm) | 25 |
| Product Type | Single wire ferrule |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1005 |
| Packaging Type | Loose Piece Ferrules |
| Base Material | Copper |
| Color Code | Metallic |
| Sub Brand | Pan-Term |
| Part Features | Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Meets DIN, UL & CSA standards for wire containment Suitable for limited space panel |
Panduit F86-25-C Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Ferrules - Bare, No Sleeve Sheet 1 Of 2 | Download and View |
| Catalog Cut Sheets | Ferrules, Non-Insulated | Download and View |
| Videos | Panduit Ferrule Installation Machine Video 16:9 CP-991 | Download and View |
| Videos | Success Depends on the Crimp Training Video 16:9 BS10-D | Download and View |
