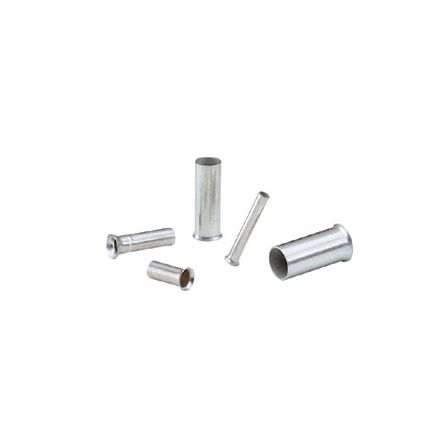

Panduit F87-18-C | Pan-Term F87-18-C Non-covered Ferrules
Ferrule, non-insulated, 1 AWG wire range, 0.71(18.0mm) length.
Panduit F87-18-C - FERRULE - FERRULES, NON-INSULATED
Specifications
Specifications
Panduit - F87-18-C - Product Categories
- Wire Termination
- Ferrules
Panduit - F87-18-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F87-18-C |
| Item Description | Pan-Term F87-18-C Non-covered Ferrules |
| Ferrule Type | Single Wire Standard |
| Copper Conductor Size (AWG) | 1 - 1/0 |
| Maximum Copper Conductor Size (AWG) | 1/0 |
| Maximum Metric Conductor Size (mm²) | 50 |
| Minimum Copper Conductor Size (AWG) | 1 - 1/0 |
| UL Temperature Rating (°C) | 150 |
| CSA Temperature Rating (°C) | 150 |
| Wire Strip Length (In.) | 23/32 |
| Wire Strip Length (mm) | 18 |
| Inside Diameter (In.) | 0.41 |
| Inside Diameter (mm) | 10.3 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.43 |
| Outer Diameter (mm) | 10.9 |
| Overall Length (In.) | 0.71 |
| Overall Length (mm) | 18 |
| Product Type | Non-covered Ferrules |
| Standards Met | DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F |
| Finish/Coating | Tin-Plated |
| For Use With | CT-1006, CT-3001 (CD-2001-F87), CT-3001/ST (CD-920-F87), CT-3001/CCP (CD-920-F87), CT-930LPCH (CD-920-F89) |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Metallic |
| Sub Brand | Pan-Term |
| Part Features | Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Meets DIN, UL & CSA standards for wire containment Suitable for limited space panel |
Panduit - F87-18-C - Package Information
| UPC | 07498376371 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.2642 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
