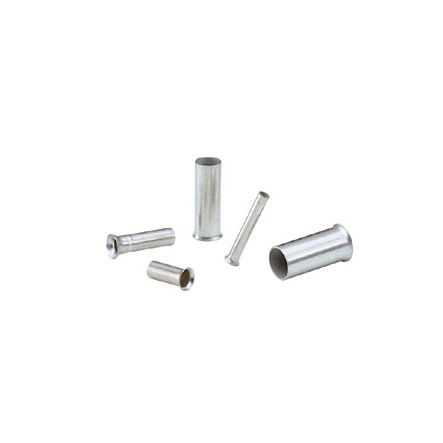

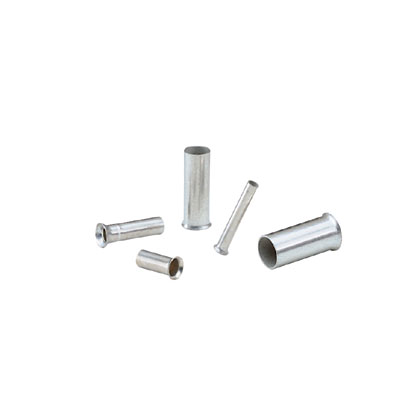

Panduit F89-25-L | Pan-Term Non-Covered Ferrules
Description
Description
For long-lasting performance, the single wire ferrule ensures clean, secure wire connections for terminal blocks in tight spaces.
The F89-25-L Pan-Term Ferrule is designed with a seamless barrel to contain loose wire strands for superior terminations in mechanical or screw down devices.
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type F Large, 2/0 AWG Conductor, 25 mm Length, Seamless Barrel, 0.59 in OD Barrel, 31/32 in L Wire Strip, 302 deg F, Copper, Tin Plated, Metallic
Panduit - F89-25-L - Features
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
Specifications
Specifications
Panduit - F89-25-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F89-25-L |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Ferrule Type | Single Wire Standard |
| Copper Conductor Size (AWG) | 2/0 |
| Maximum Copper Conductor Size (AWG) | 2/0 |
| Minimum Copper Conductor Size (AWG) | 2/0 |
| Maximum Metric Conductor Size (mm²) | 70 |
| Minimum Metric Conductor Size (mm²) | 70 |
| UL Temperature Rating (°C) | 150 |
| CSA Temperature Rating (°C) | 150 |
| Wire Strip Length (In.) | 31/32 |
| Wire Strip Length (mm) | 25 |
| Pin Length (In.) | 0.98 |
| Pin Length (mm) | 25 |
| Inside Diameter (In.) | 0.49 |
| Inside Diameter (mm) | 12.5 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Minimum Operating Temperature (°C) | -54 |
| Minimum Operating Temperature (°F) | -60 |
| Outer Diameter (In.) | 0.52 |
| Outer Diameter (mm) | 13.3 |
| Overall Length (In.) | 0.98 |
| UPC | 07498365095 |
Panduit - F89-25-L - Videos
| Panduit F89-25-L Video 1 | Click to View |
|---|---|
| Panduit F89-25-L Video 2 | Click to View |
