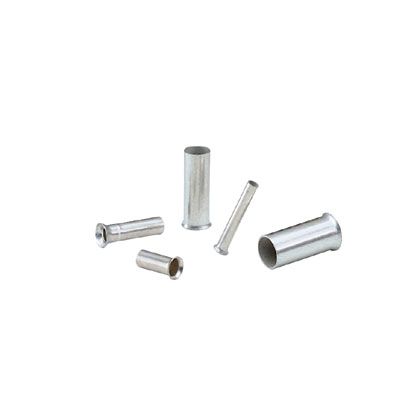

Panduit F90-32-L | Non-insulated Ferrules | UPC - 07498365099
Description
Description
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type F Large Non-Insulated, 3/0 AWG Conductor, 32 mm Length, Seamless Barrel, 0.67 in OD Barrel, 1-1/4 in L Wire Strip, 1.26 in Mounting Hole Size, 302 deg F, Copper, TiN Coated, Metallic
Features + Benefits
- Polypropylene insulation housing
- Designed specifically for use with the ferrule applicator SCA-712022002 (CA10) for high volume applications
- Continuously molded design provides consistent placement of ferrules in applicator to ensure fast, reliable terminations
Panduit F90-32-L Key Specs
| Insulation Material | Non-Insulated |
| Wire Strip Length (In.) | 1.26 |
| Wire Strip Length (mm) | 32 |
| Inside Diameter (In.) | 0.57 |
| Inside Diameter (mm) | 14.5 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.6 |
| Outer Diameter (mm) | 15.3 |
| Overall Length (In.) | 1.26 |
| Overall Length (mm) | 32 |
| Product Type | Non-insulated Ferrules |
| Standards Met | DIN 46228 Part 1, CSA C22.2 No. 291-14 |
| Finish/Coating | Tin-Plated |
| Packaging Type | Loose Piece Ferrules |
| Base Material | Copper |
| Color Code | Metallic |
| Sub Brand | DIN 46228 Part 1, CSA |
| Part Features | Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Meets DIN, UL & CSA standards for wire containment Suitable for limited space panel |
Panduit F90-32-L Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Ferrules - Bare, No Sleeve Sheet 1 Of 2 | Download and View |
| Catalog Cut Sheets | Ferrules, Non-Insulated | Download and View |
