Brand: Panduit
|
SKU:
PAN-F91-32-L-EA
Panduit F91-32-L | Pan-Term F91-32-L Single wire ferrule, Bare, 4/0 AWG, 32mm Pin L, PK50
Regular price
$7.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F91-32-L | Pan-Term F91-32-L Single wire ferrule, Bare, 4/0...
Regular price
$7.59
Unit price
Brand: Panduit
|
SKU:
PAN-F91-32-L-EA
Regular price
$7.59
Unit price
Shipping calculated at checkout.
Description
Description

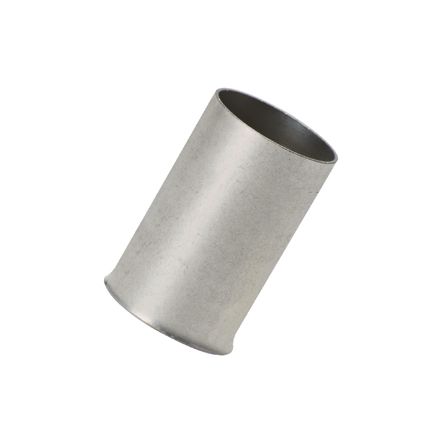

Panduit F91-32-L | Pan-Term F91-32-L Single wire ferrule, Bare, 4/0 AWG, 32mm Pin L, PK50
Ferrule, non-insulated, 4/0 AWG wire range,250 kcmil (120.0mm²) Wire Size, 1.25 (32.0mm) Pin Length.
Panduit F91-32-L - FERRULE - FERRULES, NON-INSULATED
Specifications
Specifications
Panduit - F91-32-L - Product Categories
- Wire Termination
- Ferrules
Panduit - F91-32-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F91-32-L |
| Item Description | Pan-Term F91-32-L Single wire ferrule, Bare, 4/0 AWG, 32mm Pin L, PK50 |
| Ferrule Type | Single Wire Standard |
| Copper Conductor Size (AWG) | 4/0 - 250 |
| Maximum Copper Conductor Size (AWG) | 250 |
| Maximum Metric Conductor Size (mm²) | 120 |
| Minimum Copper Conductor Size (AWG) | 4/0 - 250 |
| UL Temperature Rating (°C) | 150 |
| CSA Temperature Rating (°C) | 150 |
| Wire Strip Length (In.) | 1 1/4 |
| Wire Strip Length (mm) | 32 |
| Inside Diameter (In.) | 0.65 |
| Inside Diameter (mm) | 16.5 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.69 |
| Outer Diameter (mm) | 17.5 |
| Overall Length (In.) | 1.26 |
| Overall Length (mm) | 32 |
| Product Type | Non-covered Ferrules |
| Standards Met | DIN 46228 Part 1, CSA C22.2 No. 291-14 |
| Finish/Coating | Tin-Plated |
| For Use With | CT-3001/ST (CD-920-F91), CT-3001/CCP (CD-920-F91), CT-930LPCH (CD-920-F91) |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Metallic |
| Sub Brand | Pan-Term |
| Part Features | Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Meets DIN, UL & CSA standards for wire containment Suitable for limited space panel |
Panduit - F91-32-L - Package Information
| UPC | 07498333352 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0361 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
