Brand: Panduit
|
SKU:
PAN-F92-32-L
Panduit F92-32-L | Pan-Term F92-32-L Non-covered Ferrules
Regular price
$6.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F92-32-L | Pan-Term F92-32-L Non-covered Ferrules
Regular price
$6.76
Unit price
Description
Description

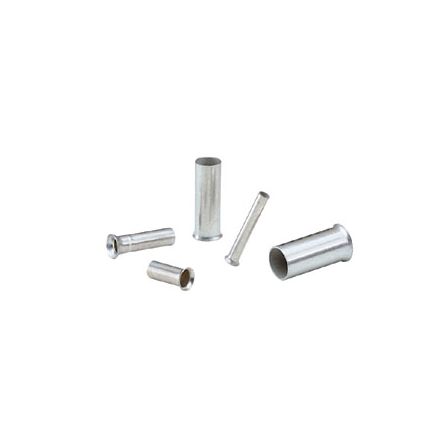

Panduit F92-32-L | Pan-Term F92-32-L Non-covered Ferrules
Ferrule, non-insulated, 300 kcmil wire range, 1.26 (32.0mm) Pin Length.
Panduit F92-32-L - FERRULE - FERRULE, NO SLEEVE
Specifications
Specifications
Panduit - F92-32-L - Product Categories
- Wire Termination
- Ferrules
Panduit - F92-32-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F92-32-L |
| Item Description | Pan-Term F92-32-L Non-covered Ferrules |
| Ferrule Type | Single Wire Standard |
| Copper Conductor Size (AWG) | 300 |
| Maximum Copper Conductor Size (AWG) | 300 |
| Maximum Metric Conductor Size (mm²) | 150 |
| Minimum Copper Conductor Size (AWG) | 300 |
| UL Temperature Rating (°C) | 150 |
| CSA Temperature Rating (°C) | 150 |
| Wire Strip Length (In.) | 1 1/4 |
| Wire Strip Length (mm) | 32 |
| Inside Diameter (In.) | 0.73 |
| Inside Diameter (mm) | 18.5 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.77 |
| Outer Diameter (mm) | 19.5 |
| Overall Length (In.) | 1.26 |
| Overall Length (mm) | 32 |
| Product Type | Non-covered Ferrules |
| Standards Met | DIN 46228 Part 1, CSA C22.2 No. 291-14 |
| Finish/Coating | Tin-Plated |
| For Use With | CT-3001/ST (CD-920-F92), CT-3001/CCP (CD-920-F92), CT-930LPCH (CD-920-F92) |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Metallic |
| Sub Brand | Pan-Term |
| Part Features | Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Meets DIN, UL & CSA standards for wire containment Suitable for limited space panel |
Panduit - F92-32-L - Package Information
| UPC | 07498333354 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0201 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
