Panduit F92ELLNLNSNM026 | Fiber Optic Patch Cord
Description
Description
Our LC duplex patch cord offers reliable, high-speed connections for voice, data, or video in data centers, offices, and telecom rooms, with fire-retardant options.
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) and plenum (OFNP) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications.

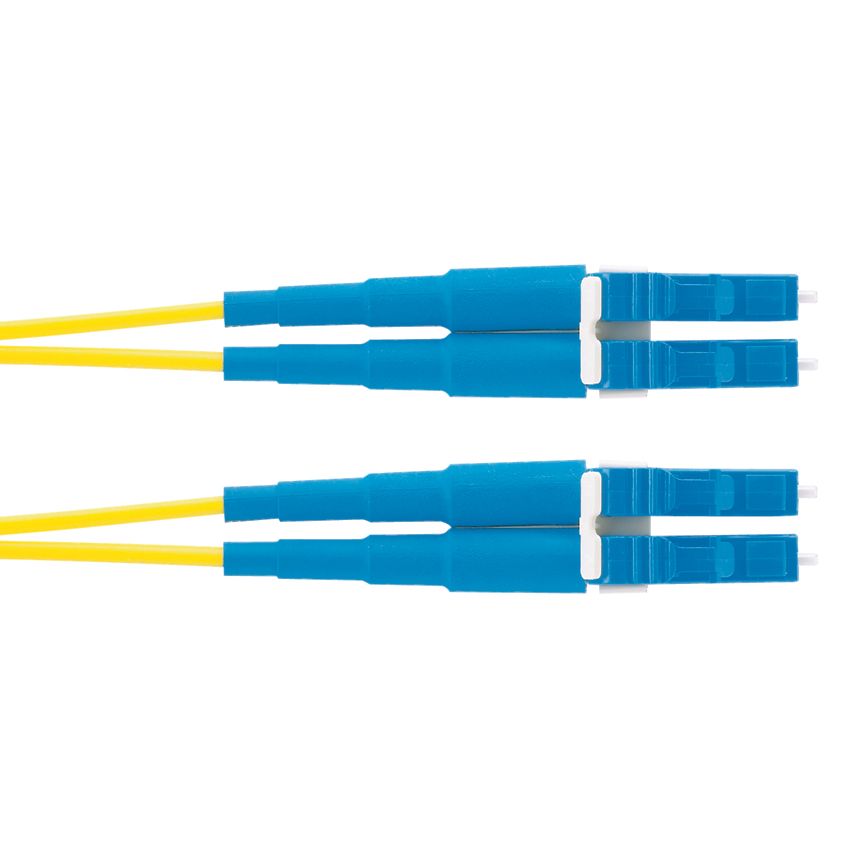

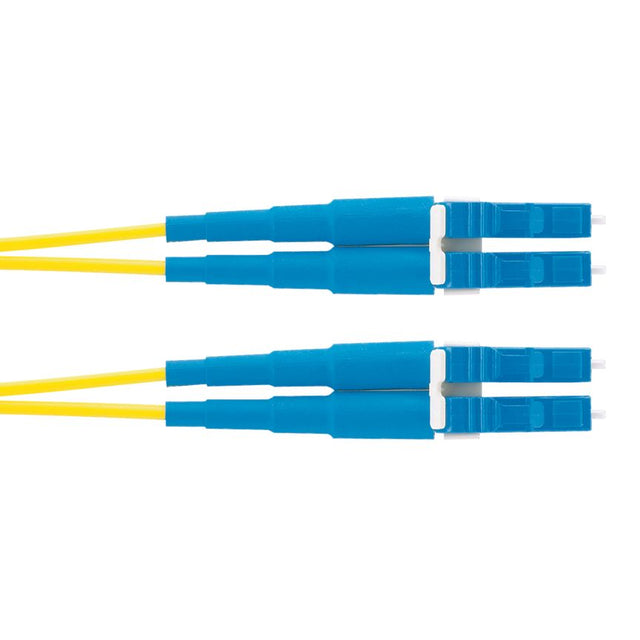

Panduit Opti-Core Fiber Optic Patch Cord, 2 Fibers, 160.76 ft Length, LC Duplex to LC Duplex Connector, 9 um Core Dimension, 125 um Clad Dimension, OS2, Yellow
Specifications
Specifications
Panduit - F92ELLNLNSNM026 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F92ELLNLNSNM026 |
| Fiber Type | OS1/OS2 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | LSZH |
| Insertion Loss Performance | Standard |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (In.) | 0.118 |
| Outer Diameter (mm) | 3 |
| Overall Length (ft.) | 85.3 |
| Overall Length (m) | 26 |
| Cable Color | Yellow |
| Product Type | Fiber Optic Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Part Features | LSZH, Duplex, 2f, 2 Fiber |
| UPC | 07498378941 |
Panduit - F92ELLNLNSNM026 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
