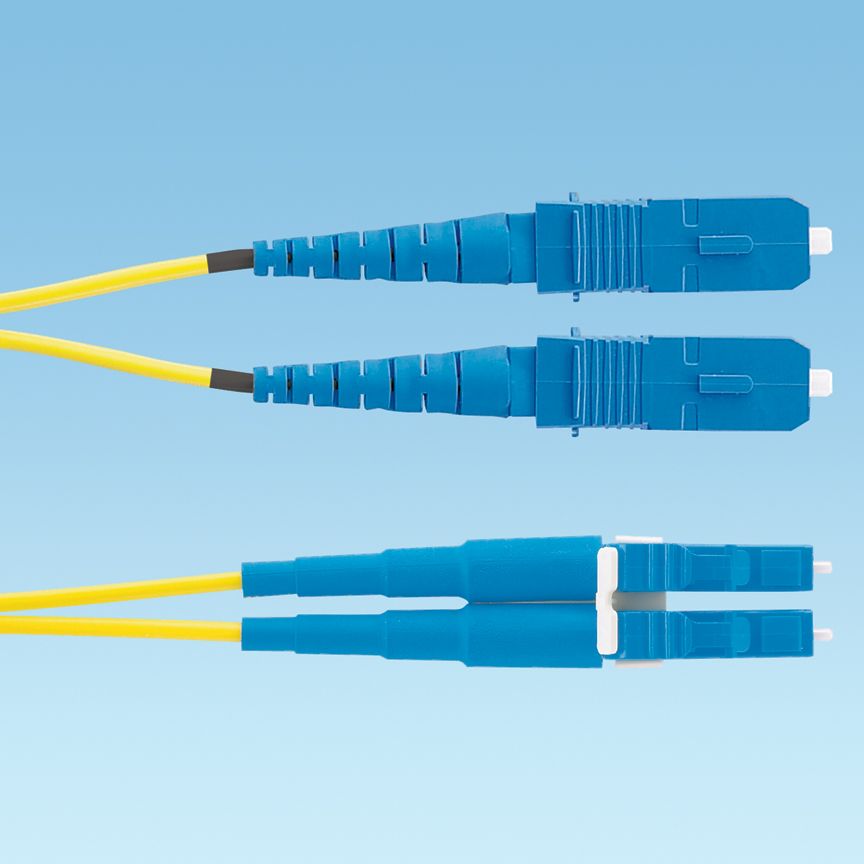

Panduit F92ELLNSNSNM009 | OS2 2F 1.6MM PC LSZH LC DUP/SC DUP STD IL 9M
Description
Description
Experience reliable, high-speed connections with our configurable connector patch cord. Perfect for data centers, telecom rooms, and offices, with fire-retardant options available.
OS1/OS2 2-fiber 1.6mm jacket, patchcord, Low Smoke Zero Halogen (LSZH) rated, LC duplex to SC duplex, Std. IL.
Panduit Opti-Core Patch Cord, OS1/OS2 LSZH Fiber Optic, 2 Fibers, 9 m Length, LC Duplex x SC Duplex Connector, 9 um Core Dimension, 125 um Clad Dimension, 55 dB Minimum Connector Return Attenuation Rating, Yellow Jacket, -20 to 70 deg C
Panduit - F92ELLNSNSNM009 - Features
- Performance/construction - standard IL (A-B)
- 1.6 mm cable
Specifications
Specifications
Panduit - F92ELLNSNSNM009 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F92ELLNSNSNM009 |
| Connector Type | Lc - Sc |
| Fiber Type | Os2 |
| Length | 9 M | 29.53 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OS1/OS2 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | LSZH |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (ft.) | 29.5 |
| Overall Length (m) | 9 |
| Cable Color | Yellow |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| UPC | 07498374017 |
Panduit - F92ELLNSNSNM009 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
