Panduit F92ELLNSNSNM011 | Fiber Optic Patch Cord
Regular price
$66.58
Unit price
Brand: Panduit
|
SKU:
663567
Regular price
$66.58
Unit price
Description
Description

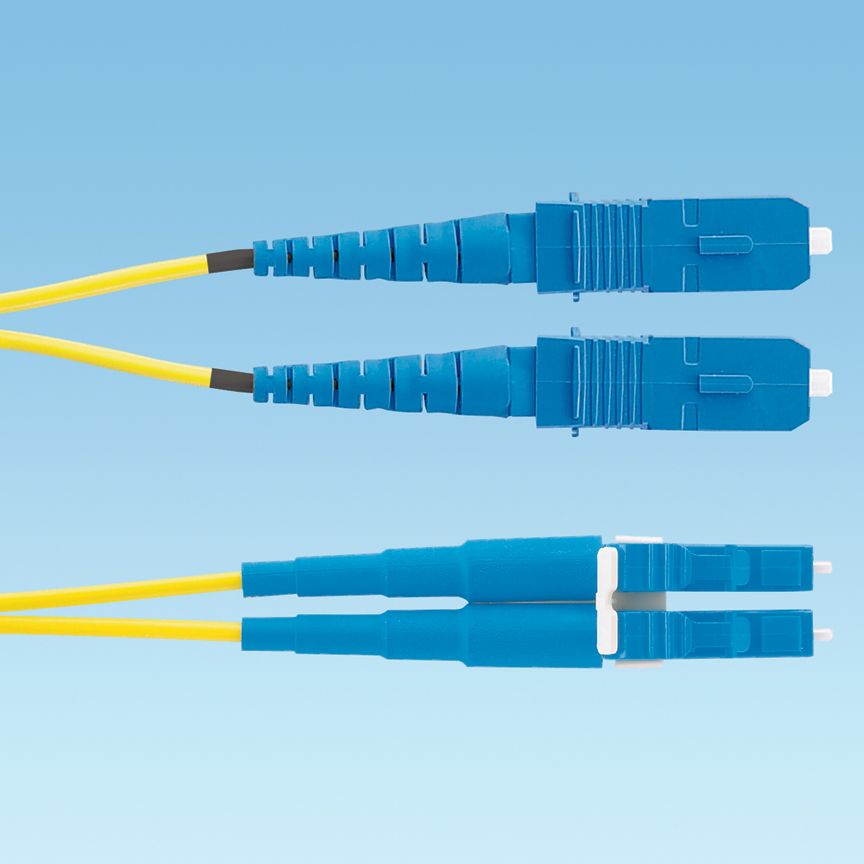

Panduit F92ELLNSNSNM011 | Fiber Optic Patch Cord
Panduit Opti-Core Patch Cord, OS1/OS2 LSZH Fiber Optic, 2 Fibers, 11 m Length, LC Duplex x SC Duplex Connector, 9 um Core Dimension, 125 um Clad Dimension, 55 dB Minimum Connector Return Attenuation Rating, Yellow Jacket, -20 to 70 deg C
Panduit - F92ELLNSNSNM011 - Features
- Without adhesive liner
- Performance/construction - standard IL (A-B)
- 1.6 mm cable
Specifications
Specifications
Panduit - F92ELLNSNSNM011 - Specifications
| Fiber Type | OS1/OS2 |
|---|---|
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | SC Duplex |
| Flammability Rating | LSZH |
| Minimum Connector Return Loss (dB) | 55 |
| Overall Length (ft.) | 36.1 |
| Overall Length (m) | 11 |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 70 |
| Maximum Installation Temperature (°F) | 158 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Yellow |
| Standards Met | RoHS Compliant, Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | Fiber Optic Patch Cord |
| Sub Brand | Opti-Core |
| UPC | 07498374036 |
Panduit - F92ELLNSNSNM011 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
