Brand: Panduit
|
SKU:
1003278
Panduit F92ELQ1Q1SNM003 | Opti-Core Fiber Optic Patch Cord
Regular price
$62.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F92ELQ1Q1SNM003 | Opti-Core Fiber Optic Patch Cord
Regular price
$62.66
Unit price
Description
Description

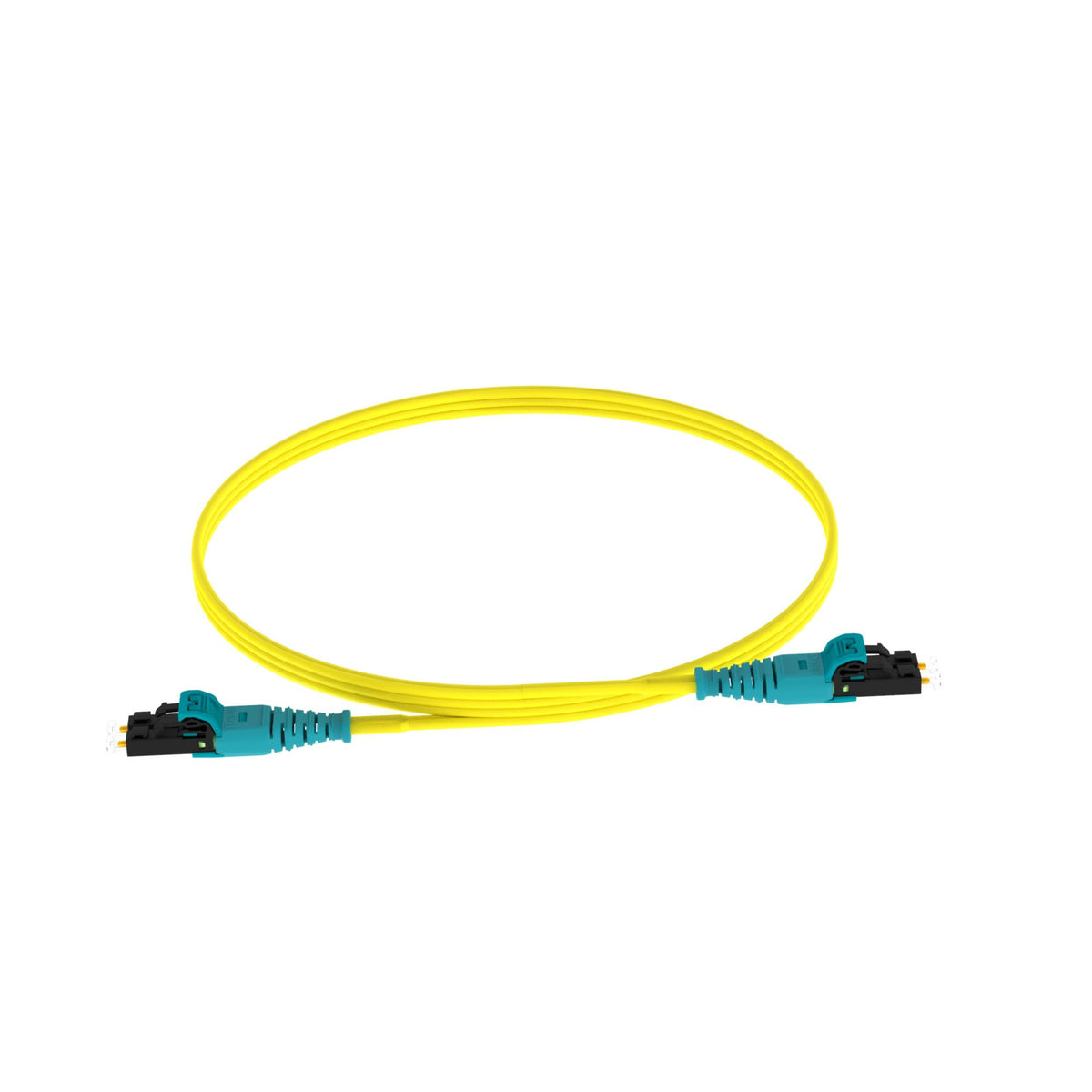

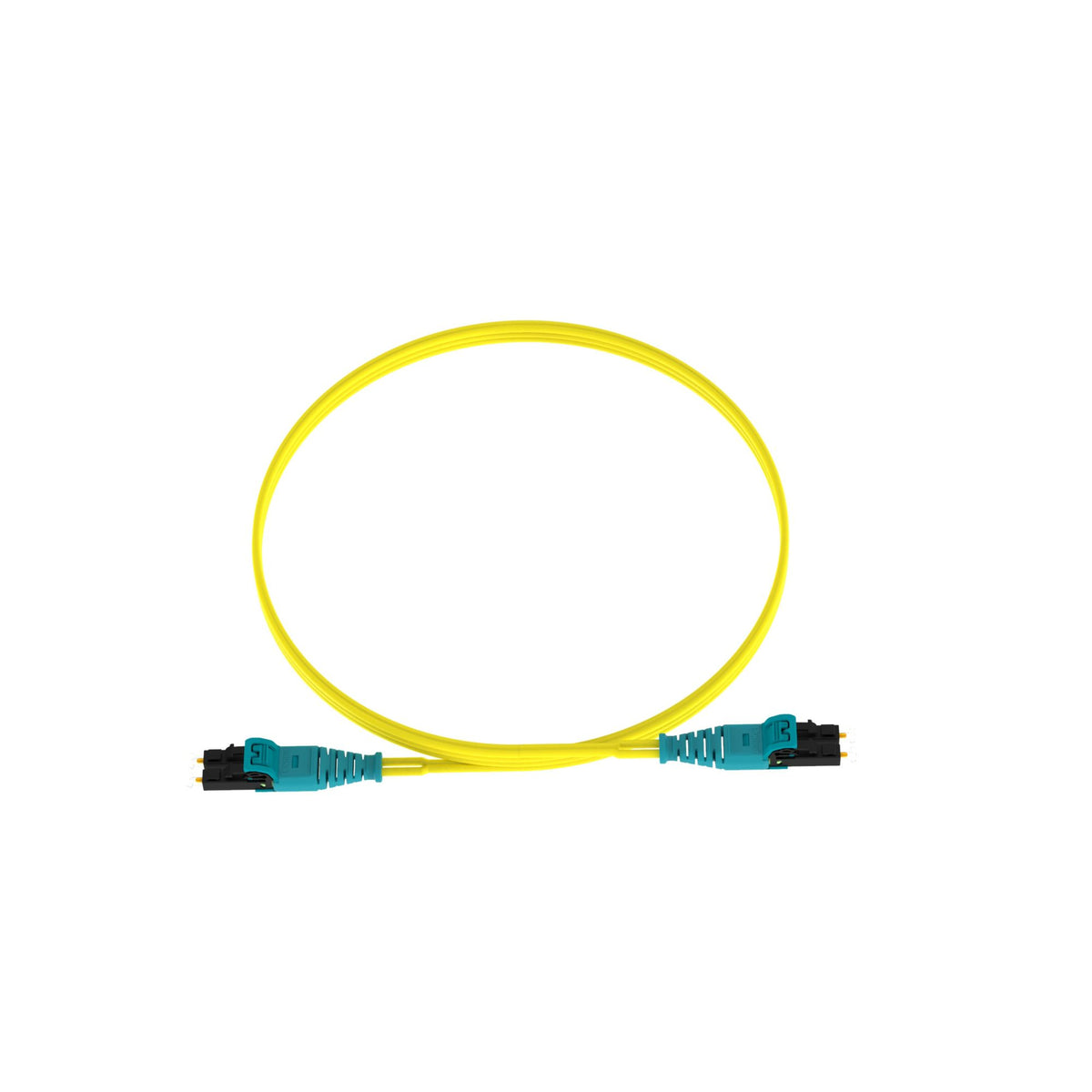

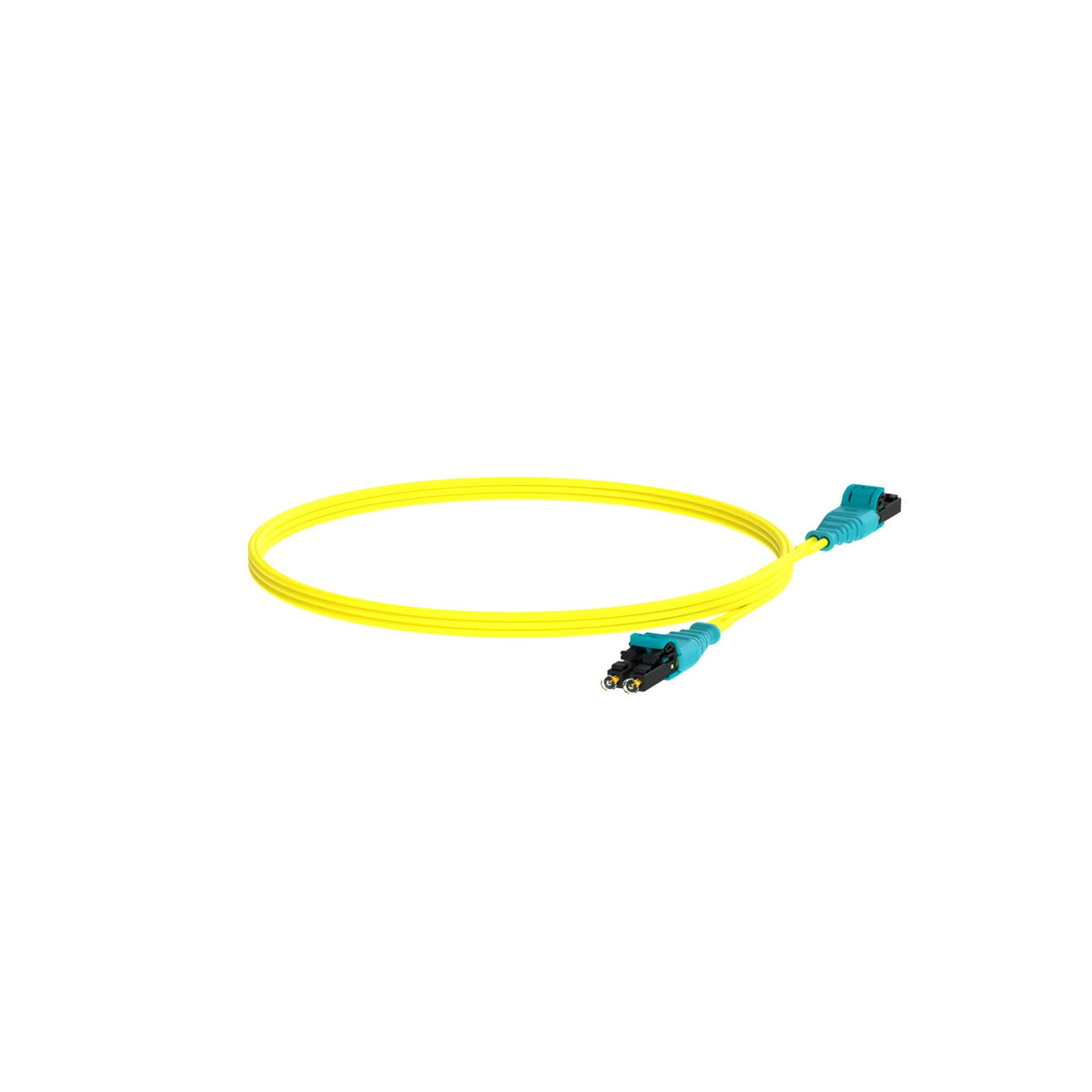

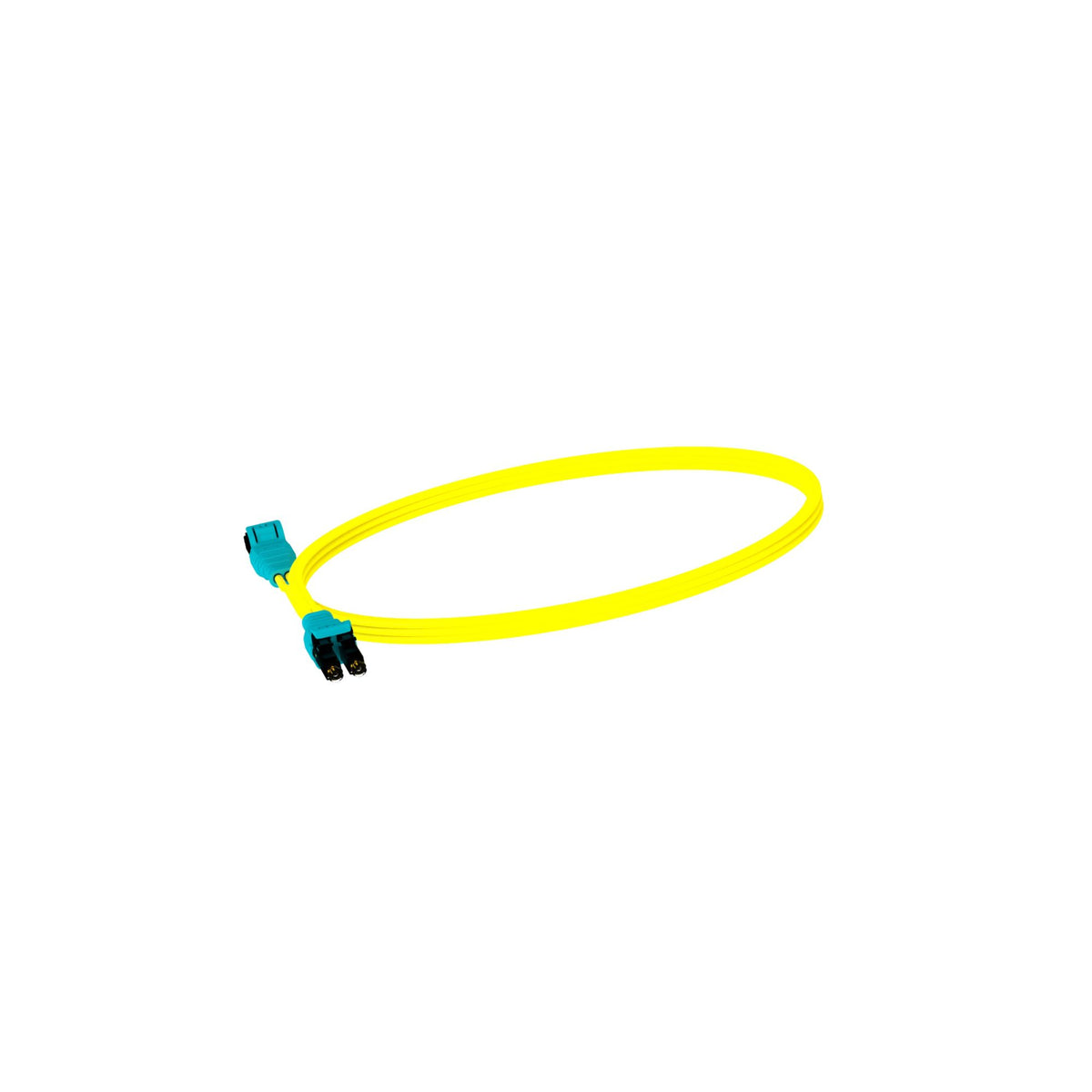

Panduit F92ELQ1Q1SNM003 | Opti-Core Fiber Optic Patch Cord
The duplex fiber patch cord is OS2 with a 1.6mm cable jacket. It is Low Smoke Zero Halogen (LSZH), features LC push pull connectors, has standard insertion loss and is 3 meters in length.
Panduit F92ELQ1Q1SNM003 2-f Patchcord Os2 1.6mm Lszhlc Push-pull -lc Push-pull, 3mf92elq1q1snm003
Specifications
Specifications
Panduit - F92ELQ1Q1SNM003 - Product Categories
- Fiber Optic Systems
- Fiber Optic Interconnects, Patch Cords & Pigtails
Panduit - F92ELQ1Q1SNM003 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F92ELQ1Q1SNM003 |
| Item Description | Opti-Core Fiber Optic Patch Cord |
| Fiber Type | OS1/OS2 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Sub Brand | Opti-Core |
| Flammability Rating | LSZH |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (ft.) | 9.8 |
| Overall Length (m) | 3 |
| Cable Color | Yellow |
| Product Type | Fiber Optic Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
Panduit - F92ELQ1Q1SNM003 - Package Information
| UPC | 07498306993 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0155 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1550 |
