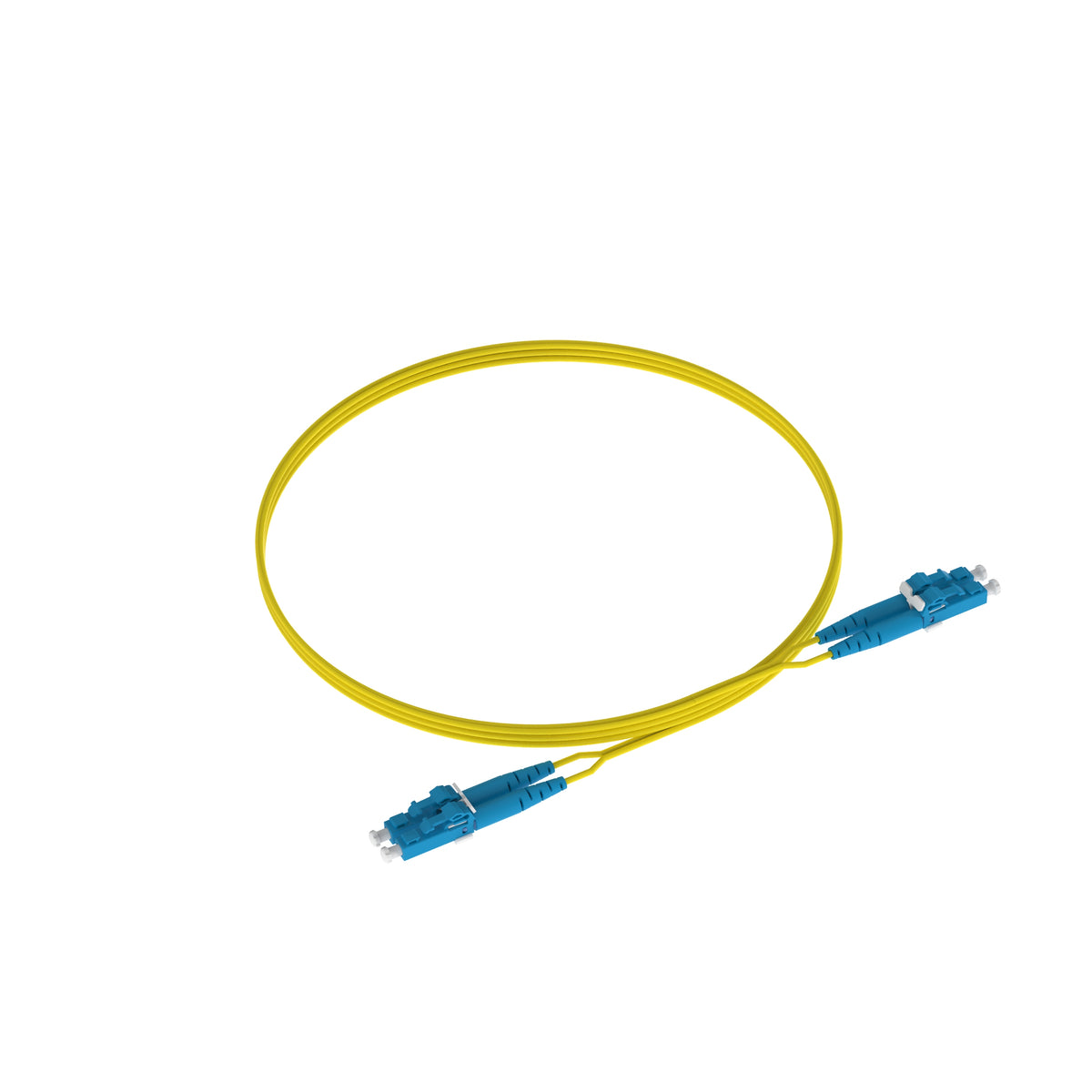

Panduit F92ERLNLNSNM009 | Opti-Core 2 Fiber Patch Cord, OS1/OS2, LC Duplex, Riser
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F92ERLNLNSNM009 | Opti-Core 2 Fiber Patch Cord, OS1/OS2, LC...
Description
Description
Our LC duplex patch cord offers reliable, high-speed connections for voice, data, or video in data centers, offices, and telecom rooms, with fire-retardant options.
The duplex fiber patch cord is OS1/OS2 with 1.6mm cable jacket. It is Riser (OFNR), features LC Duplex connectors, has standard insertion loss and is 9 meters in length.
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) and plenum (OFNP) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications.
Panduit Opti-Core Fiber Optic Patch Cord, OS1/OS2 Riser, 2 Fibers, 29.53 ft Length, LC Duplex Connector, 9 um Core, 125 um Clad, Yellow, 158 deg F
Panduit - F92ERLNLNSNM009 - Features
- Factory terminated and 100% tested for insertion loss and return loss
- Single mode end face geometry 100% factory inspected
- Single mode end face UPC polished
- Certified 10 GbE performance
- Test data supplied with each patch cord and pigtail
Specifications
Specifications
Panduit - F92ERLNLNSNM009 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F92ERLNLNSNM009 |
| Connector Type | Lc - Lc |
| Fiber Type | Os2 |
| Length | 9 M | 29.53 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OS1/OS2 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Sub Brand | Opti-Core |
| Flammability Rating | Riser (OFNR) |
| Insertion Loss Performance | Standard |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Overall Length (ft.) | 29.5 |
| Overall Length (m) | 9 |
| Cable Color | Yellow |
| Product Type | LC Patch Cord |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Standards Met | Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10) |
| UPC | 07498392150 |
Panduit - F92ERLNLNSNM009 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
