Panduit F92ERLNLNSNM014 | LC Patch Cord
Description
Description

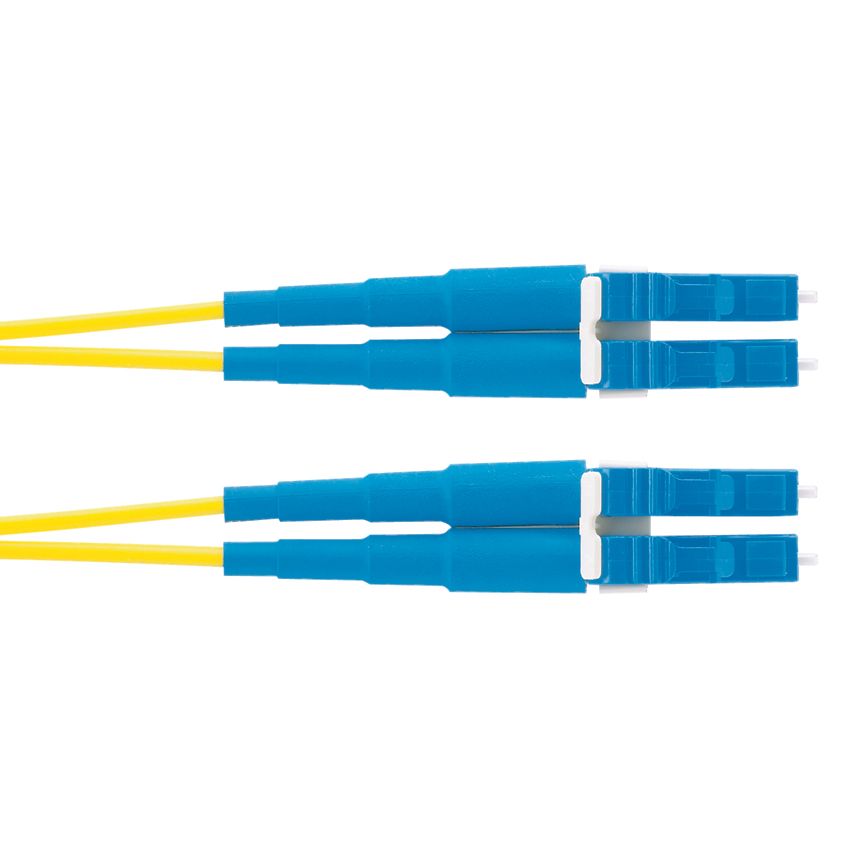

2 fiber OS2, LC duplex to LC duplex patch cord, riser (OFNR) rated, 16mm jacketed cable, Std IL 14 meters
Fiber optic patch cords and pigtails provide interconnect and cross connect of applications over installations in entrance facilities, telecommunications rooms, data centers and at the desk. Patch cords support network applications in main, horizontal and equipment distribution areas and are available in riser (OFNR) and low smoke zero halogen (LSZH) and plenum (OFNP) rated jacket materials to comply with local cabling ordinances. Pre-terminated fiber optic pigtails support fusion splice field termination applications.
Panduit Opti-Core Fiber Optic Patch Cord, OS1/OS2 Riser, 2 Fibers, 45.93 ft Length, LC Duplex Connector, 9 um Core, 125 um Clad, Yellow, 158 deg F
Panduit - F92ERLNLNSNM014 - Features
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Color specific keys with positive and negative keying features
- Factory terminated and 100% tested for insertion loss and return loss
- Certified 10 GbE performance
- Test data supplied with each patch cord and pigtail
- Universal reference cords
Specifications
Specifications
Panduit - F92ERLNLNSNM014 - Specifications
| Connector Type | Lc - Lc |
|---|---|
| Fiber Type | Os2 |
| Length | 14 M | 45.93 Ft. |
| Number Of Fibers | 2 Fiber |
| Type | Patch Cords |
| UNSPSC Code | 26121650 |
| Fiber Type | OS1/OS2 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.25 |
| Minimum Connector Return Loss (dB) | 55 |
| Overall Length (ft.) | 45.9 |
| Overall Length (m) | 14 |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Maximum Installation Temperature (°C) | 70 |
| Maximum Installation Temperature (°F) | 158 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Yellow |
| Standards Met | RoHS Compliant. Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10), All patch cord components meet the requirements of Directive 2002/95/EC. |
| Application | Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Body Style | Duplex |
| Product Type | LC Patch Cord |
| Boot Color | Green |
| Sub Brand | Opti-Core |
| UPC | 07498392155 |
Panduit - F92ERLNLNSNM014 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.70.0000 |
