Brand: Panduit
|
SKU:
704569
Panduit F92ERQ1Q1SNM001 | LC Patch Cord | UPC - 07498307536
Regular price
$61.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F92ERQ1Q1SNM001 | LC Patch Cord | UPC - 07498307536
Regular price
$61.36
Unit price
Description
Description

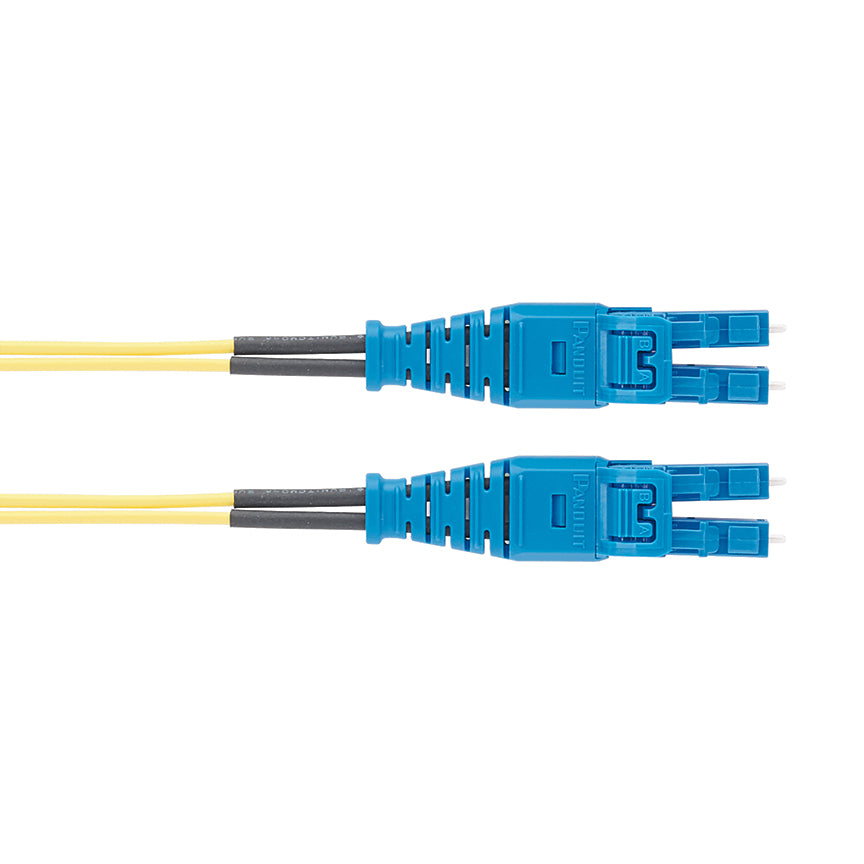

Panduit Opti-Core Fiber Optic Patch Cord, 2 Fibers, 3.28 ft Length, LC Duplex Push-Pull Connector, 9 um Core Dimension, 125 um Clad Dimension, 0.35 dB Attenuation, OS1/OS2, Yellow
Features + Benefits
- Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation cost
Panduit F92ERQ1Q1SNM001 Key Specs
| Fiber Type | OS1/OS2 |
| Number of Fibers | 2 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | LC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.35 |
| Minimum Connector Return Loss (dB) | 55 |
| Overall Length (ft.) | 3.3 |
| Overall Length (m) | 1 |
| Fiber Diameter (µm) | 9 |
| Outer Diameter (In.) | 0.06 |
| Outer Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -10 |
| Minimum Installation Temperature (°F) | 14 |
Panduit F92ERQ1Q1SNM001 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheets - N050X075C1C Product Page | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheets - TO5OX000CBC-BK Product Page | Download and View |
| Technical References | Nylon Cloth Continuous Tape Cassettes Technical Data Sheet | Download and View |
