Brand: Panduit
|
SKU:
PAN-F93-32-Q

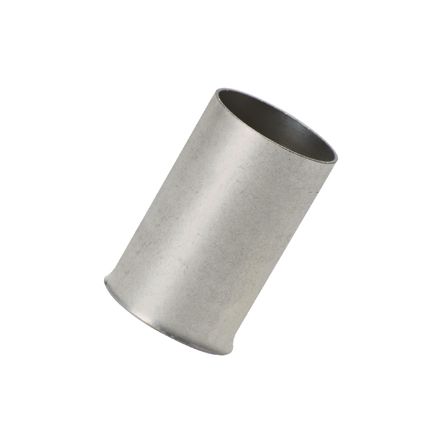

Panduit F93-32-Q | Pan-Term F93-32-Q Single wire ferrule, Bare, 350kcmil, 32mm Pin L, PK25
Sale price
$129.00
Regular price
$165.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F93-32-Q | Pan-Term F93-32-Q Single wire ferrule, Bare, 350...
Sale price
$129.00
Regular price
$165.30
Unit price
Brand: Panduit
|
SKU:
PAN-F93-32-Q
Sale price
$129.00
Regular price
$165.30
Unit price
Shipping calculated at checkout.
Description
Description
Panduit F93-32-Q | Pan-Term F93-32-Q Single wire ferrule, Bare, 350kcmil, 32mm Pin L, PK25
Ferrule, non-insulated, 350 kcmil wire range, 1.26 (32.0mm) Pin Length.
Panduit F93-32-Q - FERRULE - FERRULE, NO SLEEVE
Specifications
Specifications
Panduit - F93-32-Q - Product Categories
- Wire Termination
- Ferrules
Panduit - F93-32-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F93-32-Q |
| Item Description | Pan-Term F93-32-Q Single wire ferrule, Bare, 350kcmil, 32mm Pin L, PK25 |
| Ferrule Type | Single Wire Standard |
| Copper Conductor Size (AWG) | 350 |
| Maximum Copper Conductor Size (AWG) | 350 |
| Maximum Metric Conductor Size (mm²) | 185 |
| Minimum Copper Conductor Size (AWG) | 350 |
| UL Temperature Rating (°C) | 150 |
| CSA Temperature Rating (°C) | 150 |
| Wire Strip Length (In.) | 1 1/4 |
| Wire Strip Length (mm) | 32 |
| Inside Diameter (In.) | 0.79 |
| Inside Diameter (mm) | 20 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.83 |
| Outer Diameter (mm) | 21.2 |
| Overall Length (In.) | 1.26 |
| Overall Length (mm) | 32 |
| Product Type | Non-covered Ferrules |
| Standards Met | DIN 46228 Part 1, CSA C22.2 No. 291-14 |
| Finish/Coating | Tin-Plated |
| For Use With | CT-3001/ST (CD-920-F93), CT-3001/CCP (CD-920-F93), CT-930LPCH (CD-920-F93) |
| Packaging Type | Bag |
| Base Material | Copper |
| Color Code | Metallic |
| Sub Brand | Pan-Term |
| Part Features | Designed with a seamless barrel to contain loose wire strands for superior terminations Eases insertion of wire into terminal block Meets DIN, UL & CSA standards for wire containment Suitable for limited space panel |
Panduit - F93-32-Q - Package Information
| UPC | 07498333359 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.0226 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
