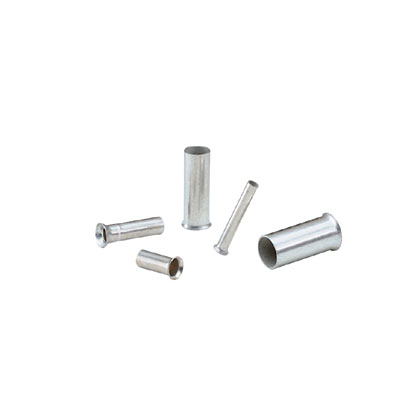

Panduit F93-40-Q | Pan-Term Non-covered Ferrules
Description
Description
For long-lasting performance, the single wire ferrule ensures clean, secure wire connections for terminal blocks in tight spaces.
Ferrule, non-insulated, 350 kcmil wire range, 1.57 (44.0mm) Pin Length.
Panduit Pan-Term ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit Pan-Term Ferrule, Type F Large, 350 kcmil Conductor, 40 mm Length, Seamless Barrel, 0.93 in OD Barrel, 1-3/4 in L Wire Strip, 302 deg F, Copper, Tin Plated, Metallic
Panduit - F93-40-Q - Features
- Polypropylene insulation housing
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
Specifications
Specifications
Panduit - F93-40-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | F93-40-Q |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Ferrule Type | Single Wire Standard |
| Copper Conductor Size (kcmil) | 350 |
| Maximum Copper Conductor Size (AWG) | 350 |
| Minimum Copper Conductor Size (AWG) | 350 |
| Maximum Metric Conductor Size (mm²) | 185 |
| UL Temperature Rating (°C) | 150 |
| CSA Temperature Rating (°C) | 150 |
| Wire Strip Length (In.) | 1-19/32 |
| Wire Strip Length (mm) | 40 |
| Inside Diameter (In.) | 0.79 |
| Inside Diameter (mm) | 20 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.83 |
| Outer Diameter (mm) | 21.2 |
| Overall Length (In.) | 1.57 |
| Overall Length (mm) | 40 |
| Product Type | Non-Covered Ferrule |
| Standards Met | DIN 46228 Part 1, CSA C22.2 No. 291-14 |
| Finish/Coating | Tin-Plated |
| For Use With | CT-3001/ST (CD-920-F93), CT-3001/CCP (CD-920-F93), CT-930LPCH (CD-920-F93) |
| UPC | 07498333357 |
