Brand: Panduit
|
SKU:
687391

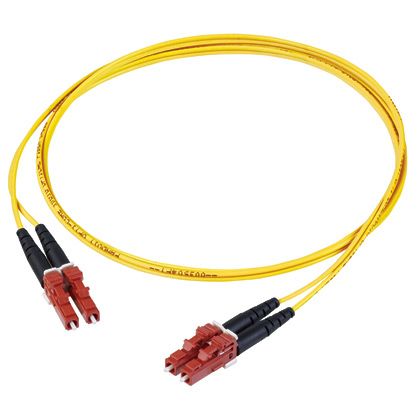

Panduit F9B10C-NM1 | Keyed LC Patch Cord | UPC - 07498309408
Regular price
$40.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit F9B10C-NM1 | Keyed LC Patch Cord | UPC - 07498309408
Regular price
$40.76
Unit price
Description
Description
LC (keyed C green) to pigtail singlemode simplex pigtail, 900µm buffered fiber (one keyed LC connector on one end and open on the other end) 9/125µm
Panduit F9B10C-NM1 Key Specs
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OS1/OS2 |
| Number of Fibers | 1 |
| Connector 1 Type | Keyed LC Simplex |
| Connector 2 Type | Pigtail |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.35 |
| Minimum Connector Return Loss (dB) | 55 |
| Overall Length (ft.) | 3.28 |
| Overall Length (m) | 1 |
| Fiber Diameter (µm) | 9 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Yellow |
| Standards Met | RoHS directive is not applicant. Compliant with TIA/EIA-568-B.3, IEC-61754-7 (International), and UL1666 (OFNR) or NFPA 262 (OFNP) flame ratings |
| Application | Primary application is FTTD deployments that require a level of visual and mechanical differentiation, and physical layer security that conventional connector solutions cannot provide. |
| Body Style | Duplex |
| Product Type | Keyed LC Patch Cord |
| Sub Brand | Opti-Core |
Panduit F9B10C-NM1 Data Sheets
| Specification Sheets | Specification Sheet - WW-FBSP31 (Keyed LC OFNR OFNP PC Pgls Final 6910 | Download and View |
| Specification Sheets | Specification Sheet - WW-FBSP45-GB (Keyed LC Patch Cords LSZH) 2-18-10 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - F9E10A-10AM1 Product Page | Download and View |
| Part Drawings | Part Drawings - PDF - F5B10A-NM1_Rev_01 | Download and View |
