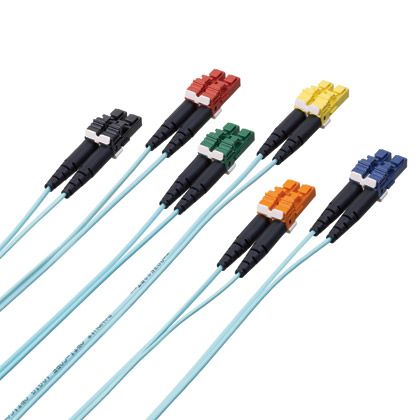

Panduit F9E10A-10M10 | Keyed LC Patch Cord | UPC - 07498307741
Regular price
$118.36
Unit price
Brand: Panduit
|
SKU:
687395
Regular price
$118.36
Unit price
Description
Description
LC (keyed A black) to LC singlemode duplex patch cord, 16mm jacketed cable (one duplex keyed LC connector on one end and one duplex LC connector on the other end) 9/125µm, Yellow, 10 meters
Panduit F9E10A-10M10 Key Specs
| Note | Intended for use in fixed installations which are outside the scope of RoHS |
| Fiber Type | OS1/OS2 |
| Number of Fibers | 2 |
| Connector 1 Type | Keyed LC |
| Connector 2 Type | LC Duplex |
| Flammability Rating | Riser |
| Maximum Connector Insertion Loss (dB) | 0.35 |
| Minimum Connector Return Loss (dB) | 55 |
| Overall Length (ft.) | 32.81 |
| Overall Length (m) | 10 |
| Fiber Diameter (µm) | 9 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Yellow |
| Standards Met | RoHS directive is not applicant. Compliant with TIA/EIA-568-B.3, IEC-61754-7 (International), and UL1666 (OFNR) or NFPA 262 (OFNP) flame ratings |
| Application | Primary application is FTTD deployments that require a level of visual and mechanical differentiation, and physical layer security that conventional connector solutions cannot provide. |
| Body Style | Duplex |
| Product Type | Keyed LC Patch Cord |
| Sub Brand | Opti-Core |
Panduit F9E10A-10M10 Data Sheets
| Part Drawings | Part Drawings - PDF - F5E10A-10M1_Rev_R_4 | Download and View |
