Panduit F9N0505RTPF100 | Interconnect Cable Assembly
Regular price
$768.31
Unit price
Brand: Panduit
|
SKU:
656039
Regular price
$768.31
Unit price
Description
Description

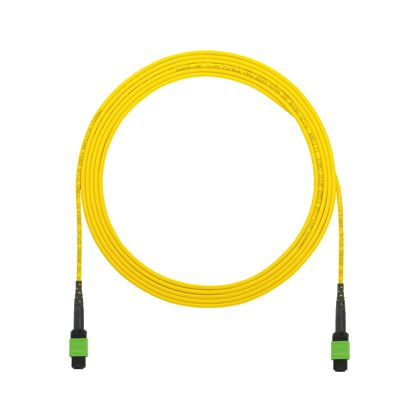

Panduit F9N0505RTPF100 | Interconnect Cable Assembly
12 fiber 9µm plenum rated female MTP/MPO female MTP/MPO interconnect round cable assembly
Panduit - F9N0505RTPF100 - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Performance/construction - standard IL/standard fan out (singlemode)
- 12 fibers
Specifications
Specifications
Panduit - F9N0505RTPF100 - Specifications
| Fiber Type | OS1/OS2 |
|---|---|
| Number of Fibers | 12 |
| Connector 1 Type | MTP*/MPO Female |
| Connector 2 Type | MTP*/MPO Female |
| Flammability Rating | Plenum |
| Maximum Connector Insertion Loss (dB) | 0.5 |
| Minimum Connector Return Loss (dB) | 55 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Fiber Diameter (µm) | 9 |
| Resistance Properties | Flame-Resistant |
| Cable Color | Yellow |
| Standards Met | RoHS directive is not applicant. Compliant with: TIA/EIA-568-C.3 and ISO/IEC 11801, IEC-61754-7 (International), TIA-604-5 (FOCIS-5), NFPA 262 (OFNP) flame rating |
| Application | Used in high-density network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas. |
| Product Type | Interconnect Cable Assembly |
| Boot Color | Black |
| Sub Brand | QuickNet |
| UPC | 07498347776 |
