Panduit FAP12WAGSCZ | Opticom Fiber Adapter Panel, OS2, 12 SC Simpl...
Description
Description
Optimize data center efficiency with our fiber adapter panel. With a range of connector options, enable efficient deployment and future modifications of your network.

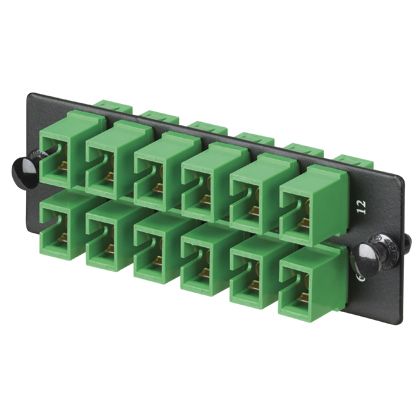

The Mini-Com SC APC fiber adapter panel is single-mode and is loaded with twelve SC APC simplex single-mode fiber optic adapters. It is green with zirconia split sleeves.
Fiber adapter panels contain TIA/EIA-604 FOCIS compliant or compatible simplex or duplex fiber optic adapters and meet or exceed TIA/EIA-568-C.3 requirements. Fiber adapter panels include horizontal and vertical MPO adapters, LC, keyed LC, SC,ST, FC, MT-RJ or E-2000 fiber optic adapters. Fiber optic adapters include phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements. LC and SC adapter housing colors follow the TIA/EIA-568-C.3 suggested color identification scheme. Multimedia modular panels allow customization of installation for applications requiring integration of fiber optic and copper cables. Blank fiber adapter panels reserve fiber adapter panel space for future use. All fiber adapter panels snap quickly into the front of fiber optic patch panels and enclosures for easy network deployment or moves, adds and changes.
Panduit Opticom Fiber Adapter Panel, Loaded, SC APC Simplex Connector, 12 Ports, Single Mode Fiber, Black
Panduit - FAP12WAGSCZ - Features
- Snap quickly into Opticom fiber adapter patch panels and enclosures assures flexibility and ease of network deployment and moves, adds, changes
- Mini-Com patch panels and Mini-Com and Opticom MPO fiber optic cassettes provides a complete system solution for connectivity, such as horizontal and vertical MPO adapters, LC, Keyed LC, SC, ST, FC, MT-RJ, E-2000 and Mini-Com fiber optic adapter modules, copper jack Mini-Com and audio/video Mini-Com
- LC and SC adapter housing colors follow TIA/EIA-568-C.3 suggested identification color scheme easy identification of fiber type via adapter colors, visually compatible with on site and connectivity that also follows the color identification scheme
- Snap quickly into the front of all Opticom components, assures flexibility and ease of network deployment and moves, adds and changes
- Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements; zirconia ceramic sp lit sleeves are recommended for OM3/OM4 multimode and OS1/OS2 single-mode applications
- Q.C. number and split sleeve material laser marked on every adapter assures 100% traceability and quick and easy identification of split sleeve material
- Provides a complete system solution for connectivity such as horizontal and vertical MPO adapters, LC, keyed LC, SC, ST, FC, MT-RJ, E-2000 and Mini-Com fiber optic adapter modules, copper jack modules and audio/video modules
- Adapter housing colors follow TIA/EIA- 568-C.3 suggested color identification scheme, easy identification of fiber type via adapter colors; visually compatible with patch cords and connectivity that also follows the color identification scheme
- Type A polarity incorporates a black MPO adapte r housing with a key-up to key-down configuration, type B polarity incorporates a charcoal gray MPO adapter housing with a key-up to key-up configuration
- Insertion loss - Supports the performance of connectors/patch cords
- Return loss - Supports single-mode (SPC and UPC) and multimode (PC) connector polish performance
Specifications
Specifications
Panduit - FAP12WAGSCZ - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FAP12WAGSCZ |
| Connector Type | Sc Simplex |
| Type | Coupler / Adapter |
| UNSPSC Code | 26121600 |
| Connection Type | SC Simplex |
| Fiber Type | OS2 |
| Material | Zirconia Ceramic |
| Adapter Color | Green |
| Overall Depth (In.) | 1.92 |
| Overall Depth (mm) | 48.7 |
| Overall Width (In.) | 4.3 |
| Overall Width (mm) | 109.1 |
| Overall Height (In.) | 1.38 |
| Overall Height (mm) | 35.2 |
| Number of Ports | 12 |
| Standards Met | RoHS compliant |
| Product Type | Front Loading Adapter Panel |
| Application | Used with Opticom Rack and Wall Mount Enclosures, Fiber Adapter Patch Panels, and Opticom Zero RU Fiber Adapter Panel Brackets to deploy medium to high-density fiber optic network applications as specified in the data center cabling standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas |
| Color | Black |
| Sub Brand | Opticom |
| UPC | 07498359128 |
Panduit - FAP12WAGSCZ - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
