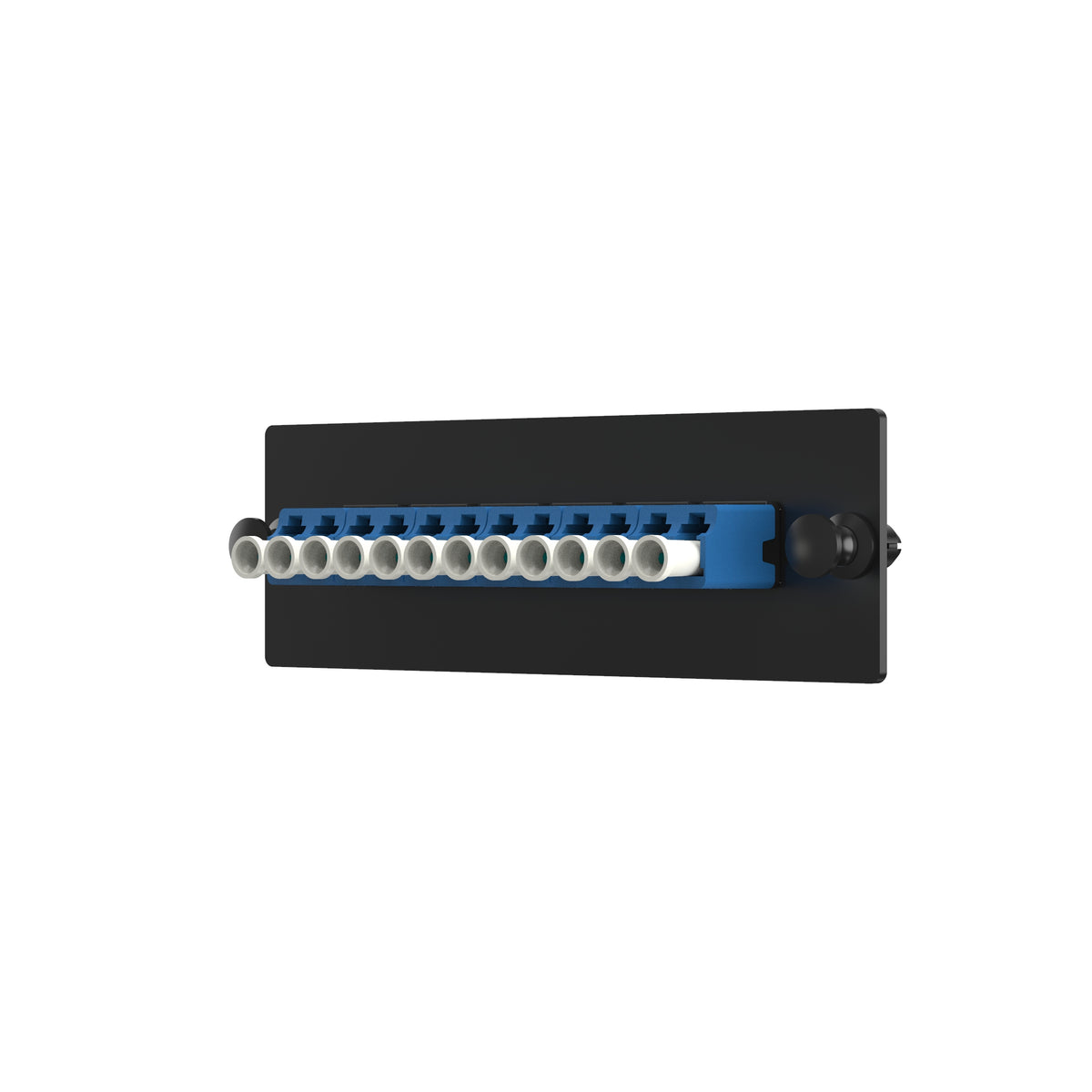

Panduit FAP12WBULCZ | Opticom FAP, OS2, 12 LC Simplex, Blue
Description
Description
Optimize data center efficiency with our fiber adapter panel. With a range of connector options, enable efficient deployment and future modifications of your network.
The LC fiber adapter panel is OS1/OS2 and is loaded with twelve LC simplex single-mode fiber optic adapters. The fiber optic adapters are blue with zirconia split sleeves.
Fiber adapter panels contain TIA/EIA-604 FOCIS compliant or compatible simplex or duplex fiber optic adapters and meet or exceed TIA/EIA-568-C.3 requirements. Fiber adapter panels include horizontal and vertical MPO adapters, LC, keyed LC, SC, ST, FC, MT-RJ or E-2000 fiber optic adapters. Fiber optic adapters include phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements. LC and SC adapter housing colors follow the TIA/EIA-568-C.3 suggested color identification scheme. Multimedia modular panels allow customization of installation for applications requiring integration of fiber optic and copper cables. Blank fiber adapter panels reserve fiber adapter panel space for future use. All fiber adapter panels snap quickly into the front of fiber optic patch panels and enclosures for easy network deployment or moves, adds and changes.
Panduit Opticom Fiber Optic Adapter Panel, 12 Fibers, OS1/OS2 Single Mode Fiber, Rack/Wall Mounting, Zirconia Ceramic, Black
Panduit - FAP12WBULCZ - Features
- Mini-Com DIN rail mount adapter mounts to standard 35 mm DIN rail and accepts any single port Mini-Com module
- Modular accepts all single Mini-Com modules, which snap-in/out for easy moves, adds and changes
- Low profile, compact size enables high component density on valuable DIN rail real estate
- Ease of installation, no custom or specialized tools required for installation or removal
- Snap quickly into the front of all Opticom(TM) components
- Loaded panels available with MPO/MPO*, LC, SC, ST, MT-RJ or FC adapters
- LC fiber adapter panels are Sr./Jr. to conserve enclosure space
- Choice of phosphor bronze or zirconia ceramic split sleeves t
Specifications
Specifications
Panduit - FAP12WBULCZ - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FAP12WBULCZ |
| Connector Type | Lc |
| Enclosure Type | Opticom |
| Fiber Count | 12 |
| UNSPSC Code | 43223328 |
| Connection Type | LC Simplex |
| Fiber Type | OS2 |
| Material | Zirconia Ceramic |
| Adapter Color | Blue |
| Overall Depth (In.) | 1.73 |
| Overall Depth (mm) | 44 |
| Overall Width (In.) | 4.3 |
| Overall Width (mm) | 109.2 |
| Overall Height (In.) | 1.39 |
| Overall Height (mm) | 35.3 |
| Number of Ports | 12 |
| Standards Met | RoHS compliant. Meets or exceeds TIA/EIA-568-C.3 requirements |
| Product Type | Front Loading Adapter Panel |
| Application | Used with Opticom Rack and Wall Mount Enclosures, Fiber Adapter Patch Panels, and Opticom Zero RU Fiber Adapter Panel Brackets to deploy medium to high-density fiber optic network applications as specified in the data center cabling standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas |
| Color | Black |
| Sub Brand | Opticom |
| UPC | 07498339541 |
Panduit - FAP12WBULCZ - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
