Panduit FAP12WBUSCZ | Opticom FAP, OS2, 12 SC Simplex, Blue
Description
Description
Optimize data center efficiency with our fiber adapter panel. With a range of connector options, enable efficient deployment and future modifications of your network.

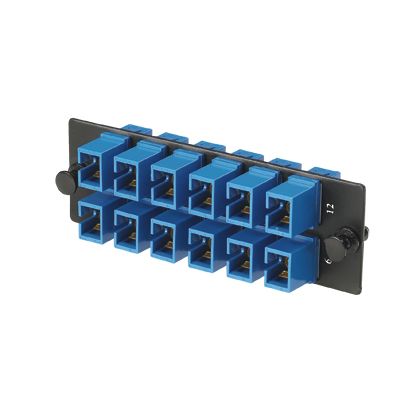

The Opticom SC fiber adapter panel is single-mode and is loaded with twelve SC simplex single-mode fiber optic adapters. It is blue with zirconia split sleeves.
Fiber adapter panels contain TIA/EIA-604 FOCIS compliant or compatible simplex or duplex fiber optic adapters and meet or exceed TIA/EIA-568-C.3 requirements. Fiber adapter panels include horizontal and vertical MPO adapters, LC, keyed LC, SC, ST, FC, MT-RJ or E-2000 fiber optic adapters. Fiber optic adapters include phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements. LC and SC adapter housing colors follow the TIA/EIA-568-C.3 suggested color identification scheme. Multimedia modular panels allow customization of installation for applications requiring integration of fiber optic and copper cables. Blank fiber adapter panels reserve fiber adapter panel space for future use. All fiber adapter panels snap quickly into the front of fiber optic patch panels and enclosures for easy network deployment or moves, adds and changes.
Panduit Opticom Fiber Optic Adapter Panel, 12 Fibers, OS1/OS2 Singlemode Fiber, Rack/Wall Mounting, Zirconia Ceramic, Black
Panduit - FAP12WBUSCZ - Features
- Mini-Com DIN rail mount adapter mounts to standard 35 mm DIN rail and accepts any single port Mini-Com module
- Modular accepts all single Mini-Com modules, which snap-in/out for easy moves, adds and changes
- Low profile, compact size enables high component density on valuable DIN rail real estate
- Ease of installation, no custom or specialized tools required for installation or removal
- Loaded with TIA/EIA-604 FOCIS-3 compliant adapters
- Exceed TIA/EIA-568-B.3 requirements
- Snap quickly into the front of all Opticom(TM) components
- Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements; zirconia ceramic split sleeves are recommended for OM3 multimode and OS1/OS2 single-mode applications
- Q.C. number and split sleeve material laser marked on every adapter assures 100% traceability and quick and easy identification of split sleeve material
- SC adapters are also available in QuickNet(TM) Fiber Optic Cassettes, Mini-Com(TM) Modules, or separately to provide a complete SC system solution
Specifications
Specifications
Panduit - FAP12WBUSCZ - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FAP12WBUSCZ |
| Connector Type | Sc Simplex |
| Enclosure Type | Opticom |
| Fiber Count | 12 |
| UNSPSC Code | 43223328 |
| Connection Type | SC Simplex |
| Fiber Type | OS2 |
| Material | Zirconia Ceramic |
| Adapter Color | Blue |
| Overall Depth (In.) | 1.92 |
| Overall Depth (mm) | 48.7 |
| Overall Width (In.) | 4.3 |
| Overall Width (mm) | 109.1 |
| Overall Height (In.) | 1.38 |
| Overall Height (mm) | 35.2 |
| Number of Ports | 12 |
| Standards Met | RoHS compliant. Meets or exceeds TIA/EIA-568-C.3 requirements |
| Product Type | Front Loading Adapter Panel |
| Application | Snap quickly into the front of all Opticom components, Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements. |
| Color | Black |
| Sub Brand | Opticom |
| UPC | 07498358767 |
Panduit - FAP12WBUSCZ - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
