Brand: Panduit
|
SKU:
313266
Panduit FAP6WAGDSCZ | Opticom Fiber Adapter Panel, OS2, 6 SC Duplex, APC Green
Regular price
$165.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FAP6WAGDSCZ | Opticom Fiber Adapter Panel, OS2, 6 SC Duplex...
Regular price
$165.30
Unit price
Description
Description
Panduit FAP6WAGDSCZ | Opticom Fiber Adapter Panel, OS2, 6 SC Duplex, APC Green
Optimize data center efficiency with our fiber adapter panel. With a range of connector options, enable efficient deployment and future modifications of your network.

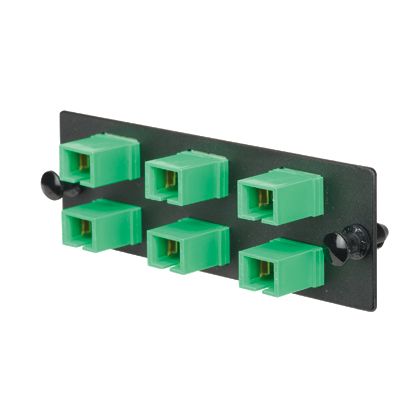

The Mini-Com SC APC fiber adapter panel is single-mode and is loaded with six SC APC duplex single-mode fiber optic adapters. It is green with zirconia split sleeves.
Panduit Opticom Fiber Adapter Panel, Type SC APC/OS1/OS2, 6 Port, Wall Mounting, Black
Panduit - FAP6WAGDSCZ - Features
- Assures flexibility and ease of network deployment and moves, adds and changes
- Easy identification of fiber type via adapter colors, visually compatible with patch cords and connectivity that also follows the color identification scheme
- Loaded with TIA/EIA-604 FOCIS-3 compliant adapters
- Exceed TIA/EIA-568-B.3 requirements
- Snap quickly into the front of all Opticom(TM) components
- Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements; zirconia ceramic split sleeves are recommended for OM3 multimode and OS1/OS2 single-mode applications
- Q.C. number and split sleeve material laser marked on every adapter assures 100% traceability and quick and easy identification of split sleeve material
- SC adapters are also available in QuickNet(TM) Fiber Optic Cassettes, Mini-Com(TM) Modules, or separately to provide a complete SC system solution
Specifications
Specifications
Panduit - FAP6WAGDSCZ - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FAP6WAGDSCZ |
| Connector Type | Sc Duplex |
| Enclosure Type | Opticom |
| Fiber Count | 6 |
| UNSPSC Code | 43223328 |
| Connection Type | SC Duplex APC |
| Fiber Type | OS2 |
| Material | Zirconia Ceramic |
| Adapter Color | APC Green |
| Overall Depth (In.) | 1.92 |
| Overall Depth (mm) | 48.7 |
| Overall Width (In.) | 4.3 |
| Overall Width (mm) | 109.1 |
| Overall Height (In.) | 1.38 |
| Overall Height (mm) | 35.2 |
| Number of Ports | 6 |
| Standards Met | RoHS compliant. Meets or exceeds TIA/EIA-568-C.3 requirements |
| Product Type | Adapter |
| Application | Used with Opticom Rack and Wall Mount Enclosures, Fiber Adapter Patch Panels, and Opticom Zero RU Fiber Adapter Panel Brackets to deploy medium to high-density fiber optic network applications as specified in the data center cabling standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas |
| Color | Black |
| Sub Brand | Opticom |
| UPC | 07498359130 |
Panduit - FAP6WAGDSCZ - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
