Brand: Panduit
|
SKU:
313274
Panduit FAP6WAQDLCZ | Opticom Fiber Adapter Panel, OM4, 6 LC Duplex, Aqua
Regular price
$165.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FAP6WAQDLCZ | Opticom Fiber Adapter Panel, OM4, 6 LC Duplex...
Regular price
$165.30
Unit price
Description
Description

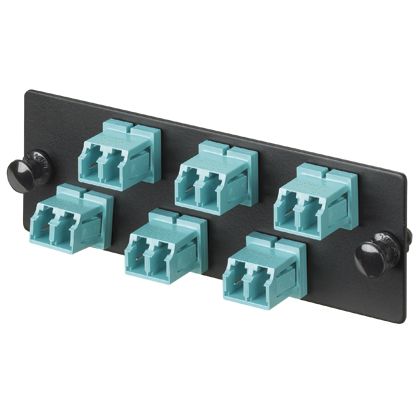

Panduit FAP6WAQDLCZ | Opticom Fiber Adapter Panel, OM4, 6 LC Duplex, Aqua
Optimize data center efficiency with our fiber adapter panel. With a range of connector options, enable efficient deployment and future modifications of your network.
The LC fiber adapter panel is OM3/OM4 and is loaded with six LC duplex multimode fiber optic adapters. It is aqua with zirconia split sleeves.
Panduit Opticom Fiber Adapter Panel, Type LC OM3/OM4, 6 Port, Wall Mounting, Black
Panduit - FAP6WAQDLCZ - Features
- Assures flexibility and ease of network deployment and moves, adds and changes
- Easy identification of fiber type via adapter colors, visually compatible with patch cords and connectivity that also follows the color identification scheme
- Snap quickly into the front of all Opticom(TM) components
- Loaded panels available with MPO/MPO, LC, SC, ST, MT-RJ or FC adapters
- LC fiber adapter panels are Sr./Jr. to conserve enclosure space
- Choice of phosphor bronze or zirconia ceramic split sleeve
- Specification Description
- Fiber Adapter Panel
- Number Of Ports: 6
- Sleeve Type: Split
- Sleeve Material: Zirconia Ceramic
- Includes: Loaded With (6) Aqua LC 10Gig(TM) OM3/OM4 50/125 um Duplex Multimode Fiber Optic Adapters
- Dimension: 4.30 Inch Length x 1.38 Inch Width x 1.73 Inch Depth (109.1 mm x 35.2 mm x 44 mm)
Specifications
Specifications
Panduit - FAP6WAQDLCZ - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FAP6WAQDLCZ |
| Connector Type | Lc |
| Enclosure Type | Opticom |
| Fiber Count | 6 |
| UNSPSC Code | 43223328 |
| Connection Type | LC Duplex |
| Fiber Type | OM3/OM4 |
| Material | Zirconia Ceramic |
| Adapter Color | Aqua |
| Overall Depth (In.) | 1.73 |
| Overall Depth (mm) | 44 |
| Overall Width (In.) | 4.3 |
| Overall Width (mm) | 109.1 |
| Overall Height (In.) | 1.38 |
| Overall Height (mm) | 35.2 |
| Number of Ports | 6 |
| Standards Met | RoHS compliant. Meets or exceeds TIA/EIA-568-C.3 requirements |
| Product Type | Front Loading Adapter Panel |
| Application | Used with Opticom Rack and Wall Mount Enclosures, Fiber Adapter Patch Panels, and Opticom Zero RU Fiber Adapter Panel Brackets to deploy medium to high-density fiber optic network applications as specified in the data center cabling standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas |
| Color | Black |
| Sub Brand | Opticom |
| UPC | 07498337657 |
Panduit - FAP6WAQDLCZ - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
