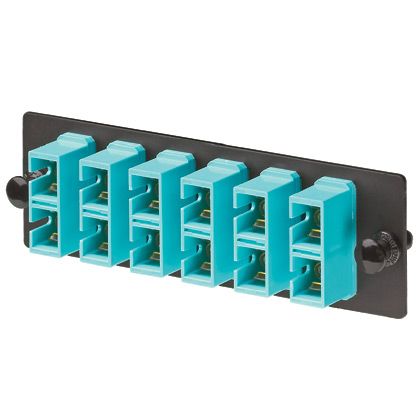

Panduit FAP6WAQDSCZ | Opticom Fiber Adapter Panel, OM4, 6 SC Duplex, Aqua
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FAP6WAQDSCZ | Opticom Fiber Adapter Panel, OM4, 6 SC Duplex...
Description
Description
Optimize data center efficiency with our fiber adapter panel. With a range of connector options, enable efficient deployment and future modifications of your network.
SC Fiber Optic Adapter Panel OM3/OM4 10Gig With Six SC Duplex Adapters Aqua With Zirconia Ceramic Split Sleeves, Loaded with TIA/EIA-604 FOCIS-3 compliant adapters, Exceed TIA/EIA-568-B.3 requirements,Snap quickly into the front of all Opticom componen ts, Loaded panels available with MPO/MTP, LC, SC, ST, MT-RJ or FC adapters. LC fiber adapter panels are Sr./Jr. to conserve enclosure space, Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements; zirconia cera mic split sleeves are required for single-mode applications, Unloaded Mini-Com Multimedia Modular Panel available to customize your installation for multimedia applications requiring integration of fiber optic and copper cables.
Panduit Opticom Fiber Adapter Panel, Type SC OM3/OM4, 6 Port, Wall Mounting, Black
Panduit - FAP6WAQDSCZ - Features
- Assures flexibility and ease of network deployment and moves, adds and changes
- Easy identification of fiber type via adapter colors, visually compatible with patch cords and connectivity that also follows the color identification scheme
- Loaded with TIA/EIA-604 FOCIS-3 compliant adapters
- Exceed TIA/EIA-568-B.3 requirements
- Snap quickly into the front of all Opticom(TM) components
- Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements; zirconia ceramic split sleeves are recommended for OM3 multimode and OS1/OS2 single-mode applications
- Q.C. number and split sleeve material laser marked on every adapter assures 100% traceability and quick and easy identification of split sleeve material
- SC adapters are also available in QuickNet(TM) Fiber Optic Cassettes, Mini-Com(TM) Modules, or separately to provide a complete SC system solution
Specifications
Specifications
Panduit - FAP6WAQDSCZ - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FAP6WAQDSCZ |
| Connector Type | Sc Duplex |
| Fiber Count | 6 |
| UNSPSC Code | 43223328 |
| Connection Type | SC Duplex |
| Fiber Type | OM3/OM4 |
| Material | Zirconia Ceramic |
| Adapter Color | Aqua |
| Overall Depth (In.) | 1.92 |
| Overall Depth (mm) | 48.7 |
| Overall Width (In.) | 4.3 |
| Overall Width (mm) | 109.1 |
| Overall Height (In.) | 1.39 |
| Overall Height (mm) | 35.2 |
| Number of Ports | 6 |
| Standards Met | RoHS compliant. Meets or exceeds TIA/EIA-568-C.3 requirements |
| Product Type | Front Loading Adapter Panel |
| Application | Used with Opticom Rack and Wall Mount Enclosures, Fiber Adapter Patch Panels, and Opticom Zero RU Fiber Adapter Panel Brackets to deploy medium to high-density fiber optic network applications as specified in the data center cabling standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas |
| Color | Black |
| Sub Brand | Opticom |
| UPC | 07498337632 |
Panduit - FAP6WAQDSCZ - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
