Brand: Panduit
|
SKU:
331034

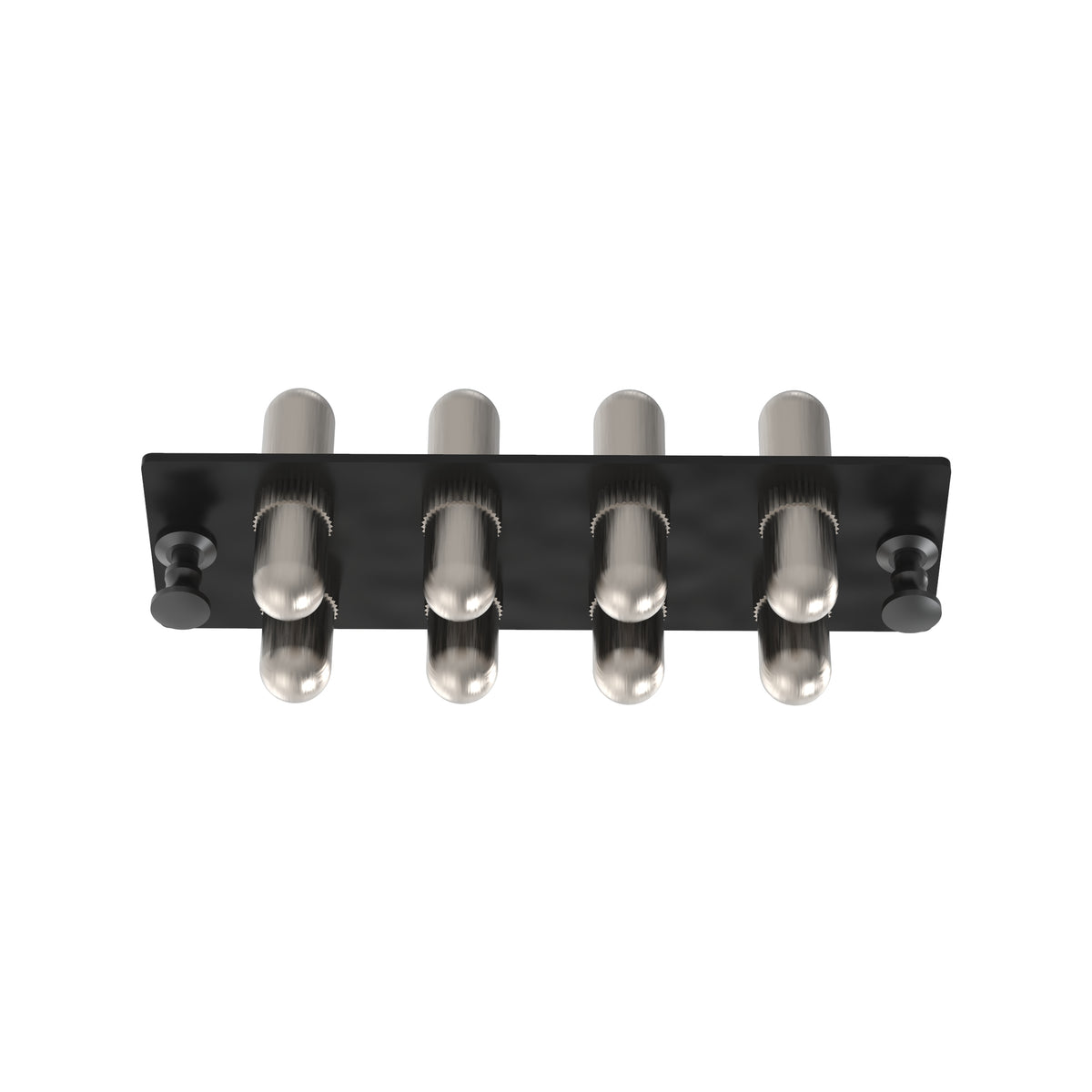

Panduit FAP8WSTZ | Opticom Fiber Adapter Panel, OS2, 8 ST Simplex, Steel Body
Regular price
$91.37
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FAP8WSTZ | Opticom Fiber Adapter Panel, OS2, 8 ST Simplex, ...
Regular price
$91.37
Unit price
Description
Description
Panduit FAP8WSTZ | Opticom Fiber Adapter Panel, OS2, 8 ST Simplex, Steel Body
Optimize data center efficiency with our fiber adapter panel. With a range of connector options, enable efficient deployment and future modifications of your network.
ST FAP loaded with eight ST simplex single-mode fiber optic adapters with zirconia ceramic split sleeves.
Panduit Opticom Fiber Adapter Panel, Type ST OM3/OM4/OS1/OS2, 12 Fibers, OM3/OM4, OS1/OS2 Fiber, Wall Mount, Zirconia Ceramic, Black
Panduit - FAP8WSTZ - Features
- Assures flexibility and ease of network deployment and moves, adds and changes
- Easy identification of fiber type via adapter colors, visually compatible with patch cords and connectivity that also follows the color identification scheme
- Loaded with TIA/EIA-604 FOCIS-2 compatible adapters
- Exceed TIA/EIA-568-B.3 requirements
- Snap quickly into the front of all Opticom(TM) components
- Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements; zirconia ceramic split sleeves are recommended for OM3 multimode and OS1/OS2 single-mode applications
- ST adapters are also available in Mini-Com(TM) Modules, or separately to provide a complete ST system solution
Specifications
Specifications
Panduit - FAP8WSTZ - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FAP8WSTZ |
| UNSPSC Code | 43223328 |
| Connection Type | ST Simplex |
| Fiber Type | OM1/OM2/OM3/OM4/OS2 |
| Material | Zirconia Ceramic |
| Adapter Color | Steel |
| Overall Depth (In.) | 1.16 |
| Overall Depth (mm) | 29.3 |
| Overall Width (In.) | 4.3 |
| Overall Width (mm) | 109.1 |
| Overall Height (In.) | 1.38 |
| Overall Height (mm) | 35.2 |
| Number of Ports | 8 |
| Mount Method | DIN Rail |
| Resistance Properties | Flame-Resistant |
| Standards Met | RoHS compliant. Meets or exceeds TIA/EIA-568-C.3 requirements |
| Product Type | Front Loading Adapter Panel |
| Application | Used with Opticom Rack and Wall Mount Enclosures, Fiber Adapter Patch Panels, and Opticom Zero RU Fiber Adapter Panel Brackets to deploy medium to high-density fiber optic network applications as specified in the data center cabling standard TIA 942 for cross connects in main distribution, horizontal distribution, and equipment distribution areas |
| Color | Black |
| Sub Brand | Opticom |
| Part Features | Assures flexibility and ease of network deployment and moves, adds, and changes |
| UPC | 07498385491 |
Panduit - FAP8WSTZ - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
