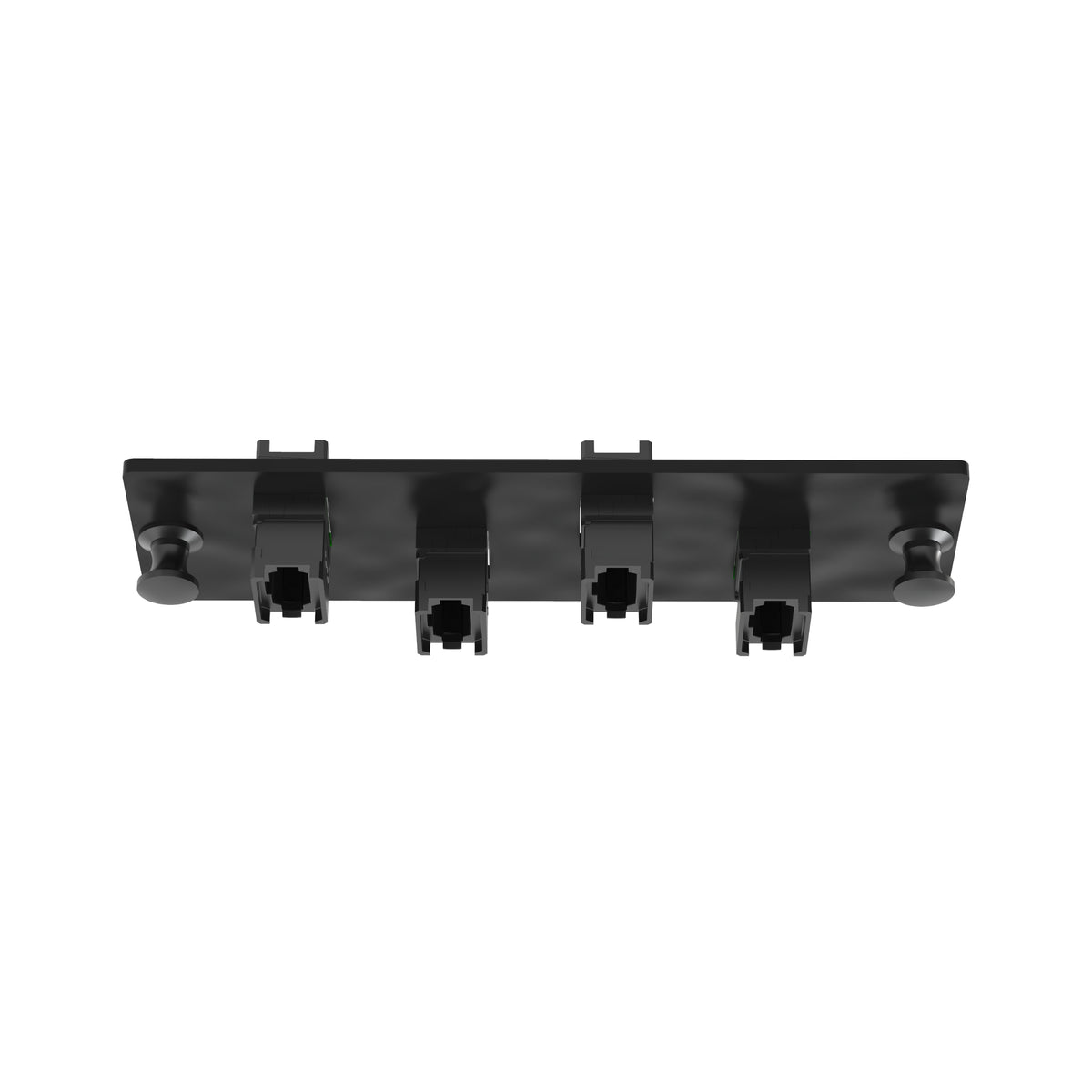

Panduit FAPH0412BLMPO | Opticom FAP, 4 Key-Up/Key-Down MPOs, Type A...
Description
Description
Our MPO fiber optic adapter panel offers versatile connectivity for your data centers, providing easy installation, customizable configurations, and reliable fiber optic connections.
MPO/MPO* FAP loaded with four MPO/MPO* fiber optic adapters; silkscreened for horizontal orientation of 12-fiber MPO or MPO* connectors.
Fiber adapter panels contain TIA/EIA-604 FOCIS compliant or compatible simplex or duplex fiber optic adapters and meet or exceed TIA/EIA-568-C.3 requirements. Fiber adapter panels include horizontal and vertical MPO adapters, LC, keyed LC, SC, ST, FC, MT-RJ or E-2000 fiber optic adapters. Fiber optic adapters include phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements. LC and SC adapter housing colors follow the TIA/EIA-568-C.3 suggested color identification scheme. Multimedia modular panels allow customization of installation for applications requiring integration of fiber optic and copper cables. Blank fiber adapter panels reserve fiber adapter panel space for future use. All fiber adapter panels snap quickly into the front of fiber optic patch panels and enclosures for easy network deployment or moves, adds, and changes.
Panduit Opticom Fiber Optic Adapter Panel, Loaded, MPO End A, 48 Fibers, OM1/OM2/OM3/OM4/OS1/OS2 Fiber, Surface Mounting, Cold Rolled Steel, Black
Panduit - FAPH0412BLMPO - Features
- Snap quickly into the front of all Opticom and Opticom QuickNet components
- Assures flexibility and ease of network deployment and moves, adds and changes
- Easy identification of fiber type via adapter colors
- Visually compatible with patch cords and connectivity that also follows the color identification scheme
- Loaded with TIA/EIA-604 FOCIS-5 compliant adapters
- Exceed TIA/EIA-568-C.3 requirements
- Silkscreened for horizontal or vertical orientation
- Designed for multimode or single-mode MPO or MPO* connectors, patch cords, or cable assemblies
- Snap quickly into the
- Specification Description
- MPO Fiber Optic Adapter Panel
- Color: Black
- Includes: Loaded With Four Key-Up/Key-Up MPO Fiber Optic Adapters; Oriented Horizontally
- Dimension: 4.30 Inch Length x 1.4 Inch Width x 0.8 Inch Depth (109 mm x 35 mm x 21 mm)
Specifications
Specifications
Panduit - FAPH0412BLMPO - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FAPH0412BLMPO |
| Connector Type | Mtp |
| Enclosure Type | Opticom |
| Fiber Count | 4 |
| UNSPSC Code | 43223328 |
| Connection Type | MPO |
| Fiber Type | OM1/OM2/OM3/OM4/OS2 |
| Material | Zirconia Ceramic |
| Adapter Color | Black |
| Fiber Polarity | Method A |
| Overall Depth (In.) | 0.82 |
| Overall Depth (mm) | 21 |
| Overall Width (In.) | 4.3 |
| Overall Width (mm) | 109 |
| Overall Height (In.) | 1.4 |
| Overall Height (mm) | 35 |
| Number of Ports | 4 |
| Mount Method | DIN Rail |
| Resistance Properties | Flame-Resistant |
| Standards Met | RoHS compliant. Meets or exceeds TIA/EIA-568-C.3 requirements |
| Product Type | Front Loading Adapter Panel |
| Application | Designed for multimode or singlemode MPO connectors, patch cords, or cable assemblies |
| Color | Black |
| Sub Brand | Opticom |
| UPC | 07498333402 |
Panduit - FAPH0412BLMPO - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
