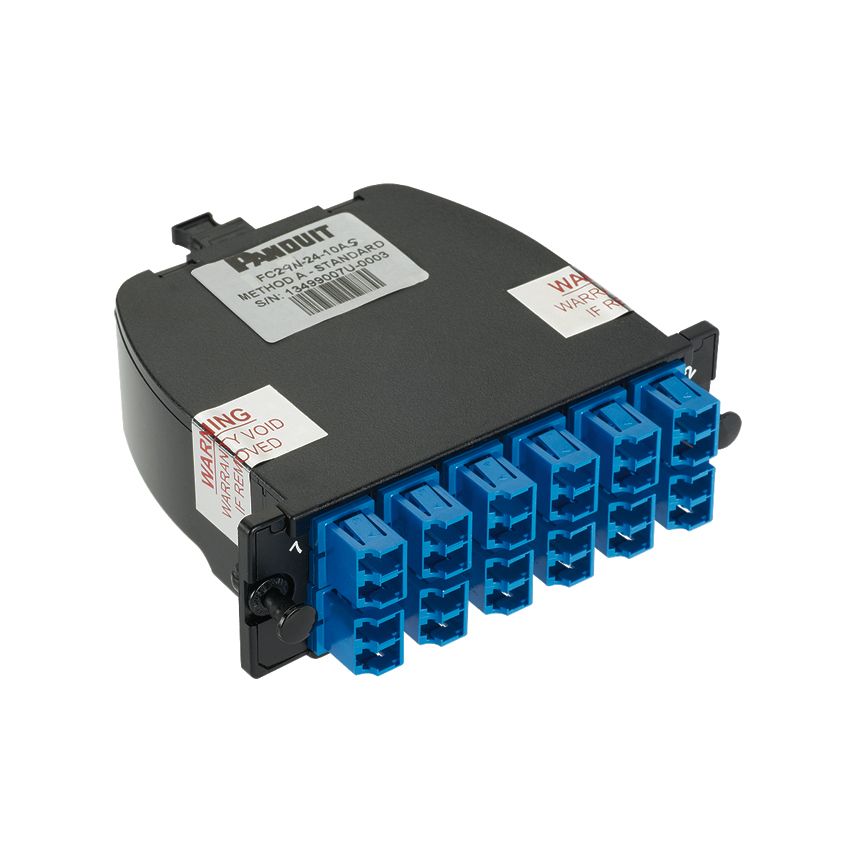

Panduit FC26N-12-10AF | Opticom LC Cassette
Description
Description
Streamline your high-density data center connections with our pre-terminated MTP fiber optic cassette. Flexible offering of LC, SC, or simplex adapter options, all within a space-saving design.
OM1 12-fiber cassette, LC duplex adapter, standard loss, (color and split sleeve dictated by fiber type), Modified Method A (flipped-pairs)
Panduit Opticom QuickNet Fiber Optic Cassette, Modified Method A Pair Flipped Standard, Duplex Adapter, LC Duplex End A, MPO Male End B, 12 Fibers, OM1 62.5/125 um Multimode Fiber, Phosphor Bronze Connector
Specifications
Specifications
Panduit - FC26N-12-10AF - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FC26N-12-10AF |
| Connector Type | Lc |
| Fiber Count | 12 |
| UNSPSC Code | 43223328 |
| Fiber Type | OM1 |
| Connection Type | LC |
| Sub Brand | Opticom |
| Number of Fibers | 12 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Beige |
| Material | Phosphor Bronze |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 20 |
| Overall Width (In.) | 3.5 |
| Overall Width (mm) | 89 |
| Overall Height (In.) | 1.4 |
| Overall Height (mm) | 35 |
| Overall Depth (In.) | 4.2 |
| Overall Depth (mm) | 106 |
| Product Type | LC Cassette |
| Application | Data Center Cabling, Cable Management |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3 performance requirements. Supports IEEE 802.3ae and ANSI T11.2 (Fiber Channel) channel and link specifications. Compliant with ROHS 2002/95/EC. |
| Color | Beige |
| Fiber Diameter (µm) | 62.5 |
| UPC | 07498395155 |
Panduit - FC26N-12-10AF - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
Documents and Downloads
Documents and Downloads
- Panduit FC26N-12-10AF Specification Sheet
- Panduit FC26N-12-10AF Part Drawings
- Panduit FC26N-12-10AF Technical References
- Panduit FC26N-12-10AF Installation Documents
- Panduit FC26N-12-10AF Application Guides
- Panduit FC26N-12-10AF Specification Sheets
- Panduit FC26N-12-10AF Application Guides
- Panduit FC26N-12-10AF RoHS Statement
