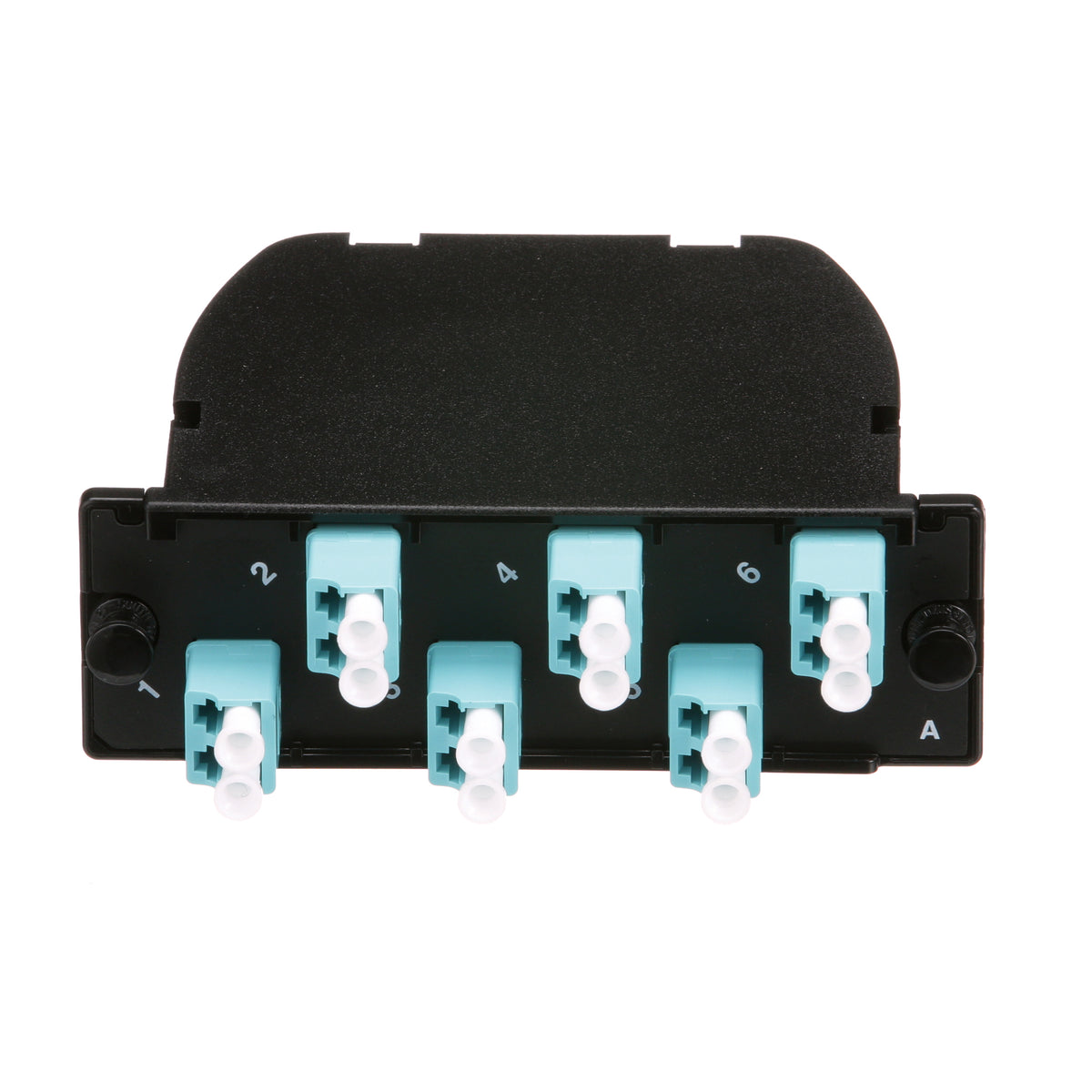

Panduit FC2XN-12-3SAS | OM3, 12-Fiber, SCsimpxAdaptr, StdLoss, EA
Description
Description
Streamline your high-density data center connections with our pre-terminated MTP fiber optic cassette. Flexible offering of LC, SC, or simplex adapter options, all within a space-saving design.
OM3 12-fiber total, standard loss, SC simplex adapter cassette (color and split sleeve dictated by fiber type), Standard Method A
Panduit Opticom QuickNet Fiber Optic Cassette, Method A Standard, Simplex Adapter, SC Simplex End A, MPO Male End B, 12 Fibers, OM3 10Gig 50/125 um Multimode Fiber, Zirconia Ceramic Connector
Specifications
Specifications
Panduit - FC2XN-12-3SAS - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | FC2XN-12-3SAS |
| Connector Type | Sc Simplex |
| Fiber Count | 12 |
| UNSPSC Code | 43223328 |
| Fiber Type | OM3 |
| Sub Brand | Opticom |
| Number of Fibers | 12 |
| Connector 1 Type | SC Simplex |
| Connector 2 Type | MPO-12 Male |
| Adapter Color | Aqua |
| Material | Zirconia Ceramic |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 3.5 |
| Overall Width (mm) | 89 |
| Overall Height (In.) | 1.4 |
| Overall Height (mm) | 35 |
| Overall Depth (In.) | 4.2 |
| Overall Depth (mm) | 106 |
| Product Type | SC Cassette |
| Application | Data Center Cabling, Cable Management |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3 performance requirements. Supports IEEE 802.3ae and ANSI T11.2 (Fiber Channel) channel and link specifications. Compliant with ROHS 2002/95/EC. |
| Color | Aqua |
| Fiber Diameter (µm) | 50 |
| Part Features | Quick and easy deployment in high density applications and provide efficient utilization of rack space and design flexibility. |
| UPC | 07498395174 |
Panduit - FC2XN-12-3SAS - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
