Brand: Panduit
|
SKU:
699632

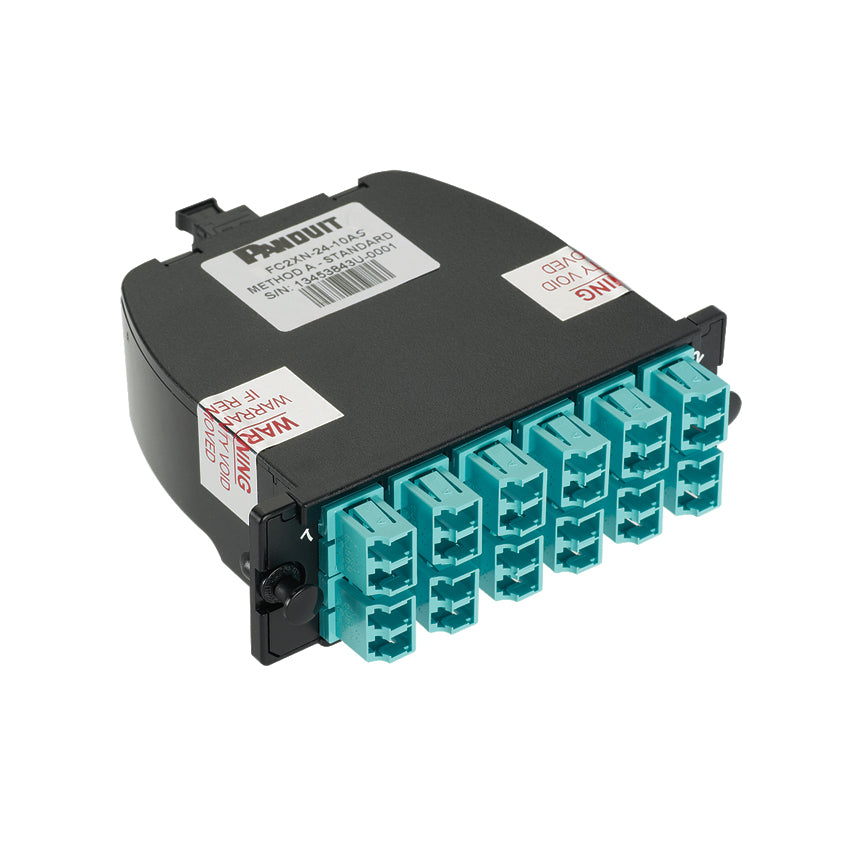

Panduit FC2XN-24-10B2 | LC Cassette | UPC - 07498371093
Regular price
$1,211.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FC2XN-24-10B2 | LC Cassette | UPC - 07498371093
Regular price
$1,211.69
Unit price
Description
Description
Panduit Opticom QuickNet Fiber Optic Cassette, 1-12 Array Method B Standard, Duplex Adapter, LC Duplex End A, MPO Male End B, 24 Fibers, OM3 10Gig 50/125 um Multimode Fiber, Zirconia Ceramic Connector
Features + Benefits
Panduit FC2XN-24-10B2 Key Specs
| Fiber Type | OM3 |
| Sub Brand | Opticom |
| Number of Fibers | 24 |
| Connector 1 Type | LC Duplex |
| Material | Zirconia Ceramic |
| Adapter Color | Aqua |
| Connector 2 Type | MPO Male |
| Maximum Connector Insertion Loss (dB) | 0.75 |
| Minimum Connector Return Loss (dB) | 26 |
| Overall Width (In.) | 3.5 |
| Overall Width (mm) | 89 |
| Overall Depth (In.) | 4.2 |
| Overall Depth (mm) | 106 |
| Overall Height (In.) | 1.4 |
| Overall Height (mm) | 35 |
| Standards Met | Meets or exceeds TIA/EIA-568-C.3 performance requirements. Supports IEEE 802.3ae and ANSI T11.2 (Fiber Channel) channel and link specifications. Compliant with ROHS 2002/95/EC. |
| Product Type | LC Cassette |
| Application | Data Center Cabling, Cable Management |
| Color | Aqua |
| Fiber Diameter (µm) | 50 |
Panduit FC2XN-24-10B2 Data Sheets
| Installation Documents | Crimp Dies for C-920 and C-940: PCTP27416B01-CD920CD940--REV003--ENG | Download and View |
| Product Bulletins | BlackFin Installation Tools: ELCB20 | Download and View |
