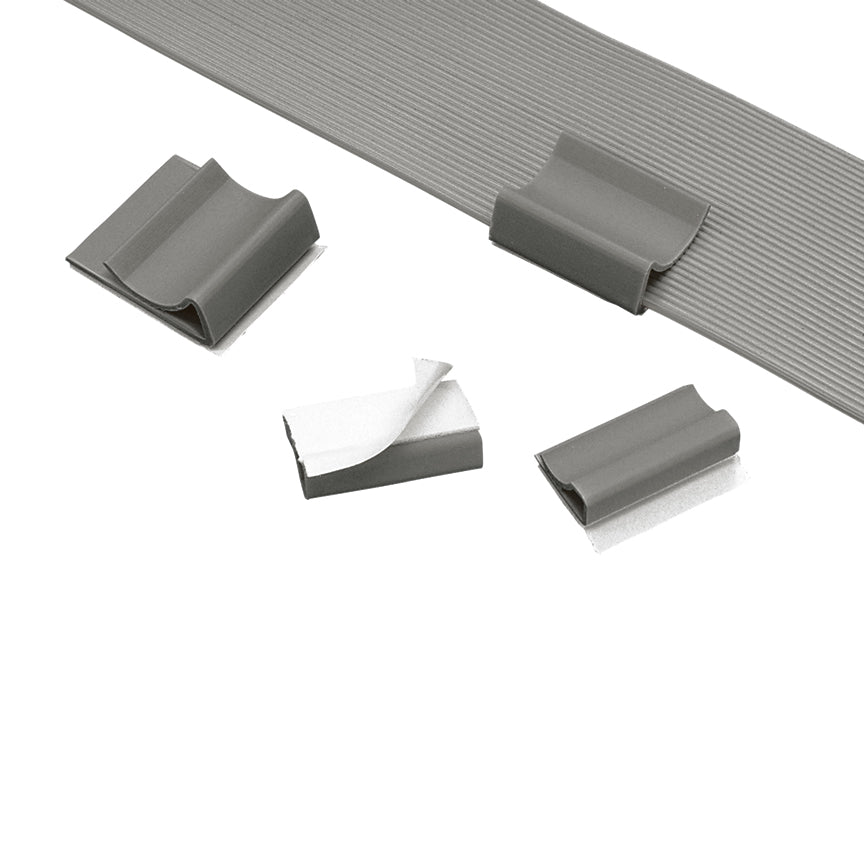

Panduit FCC-A-D8 | Flat Cable Clip
Description
Description
Panduit offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit adhesive backed mounts and devices offer the advantage of lower installed cost and high reliability.
Panduit Flat Cable Clip, Adhesive Backed, 1.09 in Cable, 0.5 lb Static Load, Rubber Adhesive Tape Mounting, Specifications: Gray Color, PVC, 1 in L x 1.09 in W x 0.38 in H Dimensions
Organize your cables with the low-profile flat cable clip. Perfect for tight spaces, it securely holds wires, cables, and tubing with ease. Ideal for indoor use
Panduit - FCC-A-D8 - Features
- Riser (OFNR) rated with 1.6 mm jacket
- Releasable latches allow addition or removal of cables
- Superior adhesive for long-term reliability
- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
- Used with Panduit cable ties for a complete wire routing solution
- 1-piece solutions lower inventory costs and speed installation
- Bevel entry on wire clips speeds installation
- Cable tie entry ramps guide the cable tie into the mount
Specifications
Specifications
Panduit - FCC-A-D8 - Specifications
| Product Type | Flat Cable Mount |
|---|---|
| Adhesive Material | Rubber |
| Application | Wire Routing Solutions |
| Material | PVC |
| Color | Gray |
| Environment | Indoor |
| For Use With | Flat Cable |
| Mount Method | Rubber Adhesive Tape |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 1.09 |
| Overall Width (mm) | 27.7 |
| Overall Height (In.) | 0.38 |
| Overall Height (mm) | 9.7 |
| Standards Met | UL Recognized: E136577; RoHS Compliant |
| Static Load Capacity (kg) | 0.274 |
| Static Load Capacity (lb) | 0.6 |
| UPC | 07498359324 |
Panduit - FCC-A-D8 - Package Information
| UPC | 07498359324 |
|---|---|
| Standard Packaging Quantity | 500 |
| Standard Packaging Volume (cf) | 0.2163 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 2.1626 |
