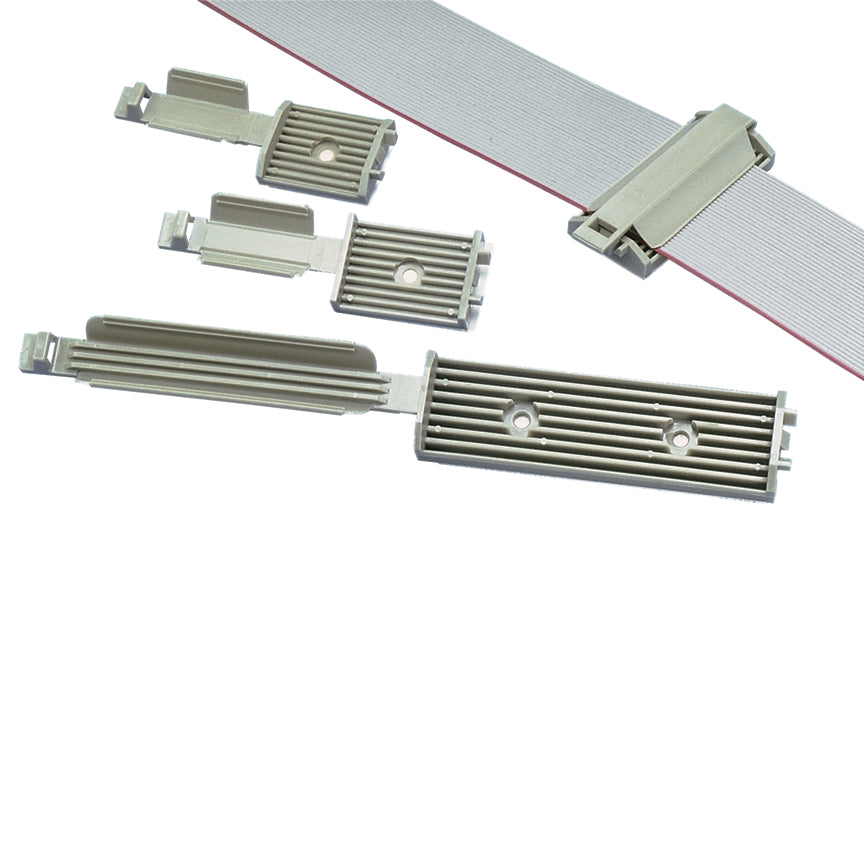

Panduit FCM3.25-A-L14 | Flat Cable Mount | UPC - 07498359366
Description
Description
Panduit offers high performance adhesive backed mounts and devices for a quick, dependable method of securing, routing and protecting wires or cables. The adhesive backing provides easy installation and is an alternative to mechanical fasteners. When properly installed, Panduit adhesive backed mounts and devices offer the advantage of lower installed cost and high reliability.
Panduit Latching Flat Cable Mount, Adhesive Backed, 3-1/4 in Cable, 1.5 lb Static Load, Rubber Adhesive Tape Mounting, Specifications: 3.38 in W Clip, 6 (M3) Screw, Gray Color, Nylon 6.6, 7.3 in L x 3.38 in W Dimensions
Features + Benefits
- Releasable latches allow addition or removal of cables
- Superior adhesive for long-term reliability
- 2-up mount configuration speeds liner removal and installation
- 4-way cable tie entry makes part orientation fast and easy
- Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled
- Used with Panduit cable ties for a complete wire routing solution
- 1-piece solutions lower inventory costs and speed installation
- Bevel entry on wire clips speeds installation
- Cable tie entry ramps guide the cable tie into the mount
- Low profile design holds wires, cables and tubing
- Large mounting base for high bonding strength
- With a stack height of 0.17 in to accommodate different flat cable widths
Panduit FCM3.25-A-L14 Key Specs
| Application | Wire Routing Solutions |
| Product Type | Flat Cable Mount |
| Adhesive Material | Rubber |
| Material | Nylon 6.6 |
| Color | Gray |
| Environment | Indoor |
| For Use With | Wires; Cables and Tubing |
| Mount Method | Rubber Adhesive Tape |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Width (In.) | 3.38 |
| Overall Width (mm) | 85.8 |
| Screw Size | #6 (M3) |
| Standards Met | UL Recognized: E136577; RoHS Compliant |
| Static Load Capacity (kg) | 0.7 |
| Static Load Capacity (lb) | 1.5 |
Panduit FCM3.25-A-L14 Data Sheets
| Part Drawings | Crimp Tool with Dual-Layer PVC Head Cover | Download and View |
| Manuals | Instruction Manual -CT-2931 Series | Download and View |
| Product Bulletins | BlackFin Installation Tools: ELCB20 | Download and View |
