Brand: Panduit
|
SKU:
10667293

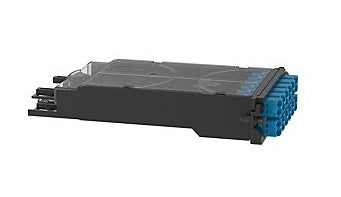

Panduit FCS29N-24-LSP | Opticom LC Splice Cassette OS2, 24F Pigtails (250um), Std IL
Regular price
$991.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit FCS29N-24-LSP | Opticom LC Splice Cassette OS2, 24F Pigtail...
Regular price
$991.57
Unit price
Description
Description
Panduit FCS29N-24-LSP | Opticom LC Splice Cassette OS2, 24F Pigtails (250um), Std IL
Save time and ensure reliable connections in high-density data centers with our splice cassettes, pre-loaded with adapters and splicing tools for easy on-site assembly of fiber optic networks.
Specifications
Specifications
Panduit - FCS29N-24-LSP - Package Contents
| UPC | 61305691285 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0830 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.8304 |
Panduit - FCS29N-24-LSP - Specifications
| Fiber Type | OS2 |
|---|---|
| Sub Brand | Opticom® |
| Number of Fibers | 24 |
| Connector 1 Type | LC Duplex |
| Connector 2 Type | Unterminated |
| Maximum Connector Insertion Loss (dB) | 0.35 |
| Minimum Connector Return Loss (dB) | 26 |
| Insertion Loss Performance | Standard |
| Overall Length (In.) | 7.92 |
| Overall Length (mm) | 201 |
| Overall Width (In.) | 4.3 |
| Overall Width (mm) | 109.2 |
| Overall Height (In.) | 1.38 |
| Overall Height (mm) | 35.2 |
| Overall Depth (In.) | 7.92 |
| Overall Depth (mm) | 201 |
| Product Type | LC Splice/FAP Cassette |
| Standards Met | TIA/EIA-568-C.3,IEEE 802.3ae and ANSI T11.7 |
| Fiber Diameter (µm) | 250 |
